MSI

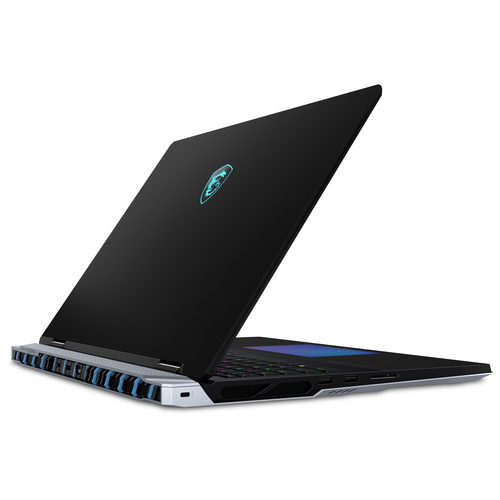

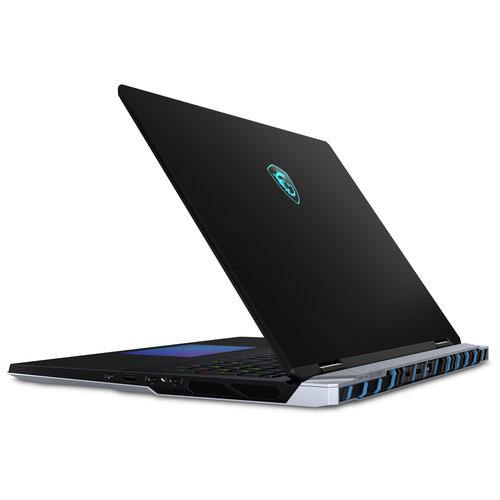

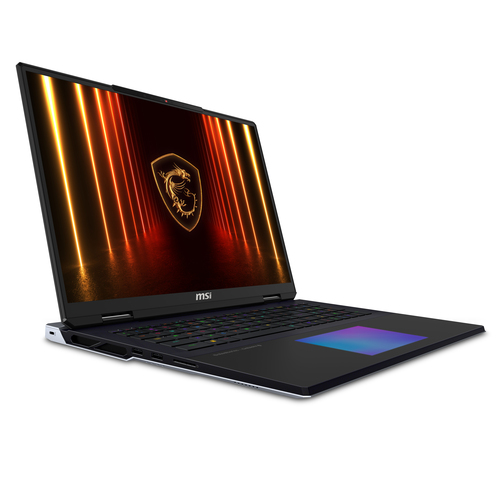

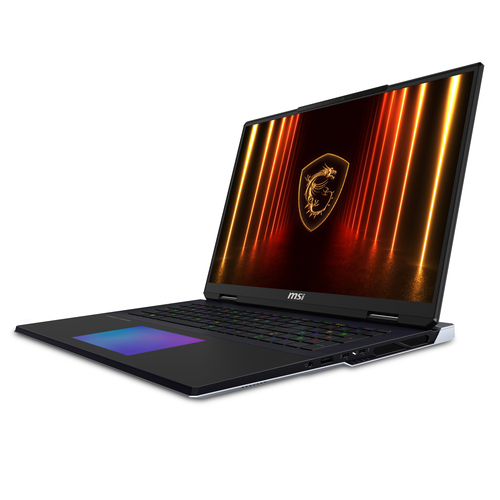

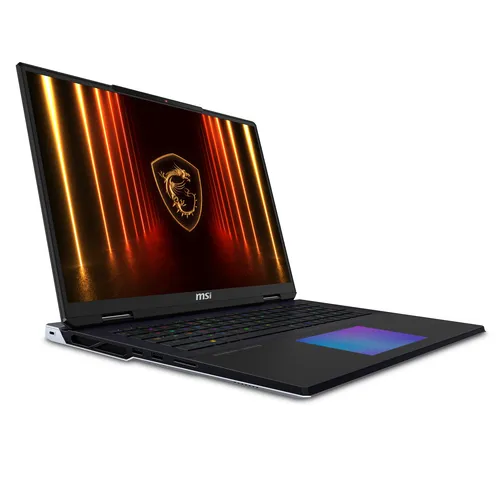

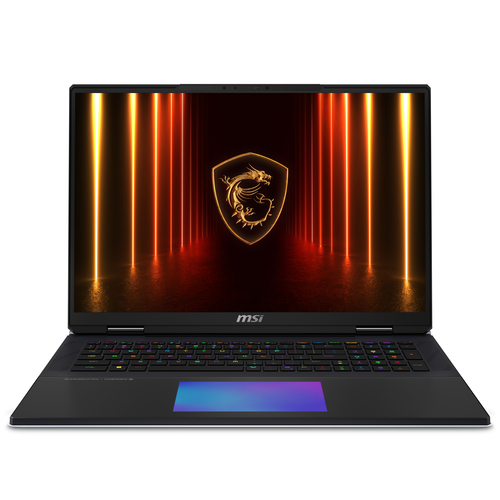

Titan 18 HX AI A2XWJG 614US (TITAN18HXA2614)
18" Display
285HXCPU
64 GBRAM
6 TBStorage
NVIDIA GeForce RTX 5090Graphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Colour nameCore Black
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Original brand nameMSI
Display
- Display diagonal45.7 cm (18")
- Display resolution3840 x 2400 pixels
- TouchscreenNo
- HD typeUHD+
- Panel typeMini LED
- Native aspect ratio16:10
- Anti-glare screenYes
- RGB colour spaceDCI-P3
- Colour gamut100%
- Maximum refresh rate120 Hz
- High Dynamic Range (HDR) supportedYes
- High Dynamic Range (HDR) technologyDisplayHDR 1000
Processor
- Processor manufacturerIntel
- Processor familyIntel Core Ultra 9
- Processor generationIntel Core Ultra (Series 2)
- Processor model285HX
- Processor cores24
- Processor threads24
- Processor boost frequency5.5 GHz
- Performance cores8
- Efficient cores16
- Performance-core Max Turbo Frequency5.5 GHz
- Efficient-core Max Turbo Frequency4.6 GHz
- Performance-core base frequency2.8 GHz
- Efficient-core base frequency2.1 GHz
- Processor cache36 MB
- Processor base power55 W
- Maximum turbo power160 W
Neural processor unit (NPU)
- Neural processor unit (NPU)Intel AI Boost
- Sparsity supportYes
- Windows Studio effects supportYes
- AI software frameworks supported by NPUDirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Total processor performance up to36 TOPs
- NPU performance up to13 TOPs
- GPU performance up to8 TOPs
Memory
- Internal memory64 GB
- Internal memory typeDDR5-SDRAM
- Memory clock speed6400 MHz
- Memory layout (slots x size)2 x 32 GB
- Memory slots2x SO-DIMM
- Maximum internal memory96 GB
Storage
- Total storage capacity6 TB
- Storage mediaSSD
- Total SSDs capacity6 TB
- SSD interfacePCI Express 4.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
- Card reader integratedYes
- Compatible memory cardsSD
Graphics
- Discrete GPU manufacturerNVIDIA
- Discrete graphics card modelNVIDIA GeForce RTX 5090
- Discrete graphics card memory24 GB
- Discrete graphics memory typeGDDR7
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardYes
- On-board graphics card familyIntel® Graphics
- On-board graphics card modelIntel® Graphics
Audio
- Number of built-in speakers6
- Speaker power2 W
Camera
- Front cameraYes
- Front camera resolution1920 x 1080 pixels
- Front camera HD typeFull HD
- Video capturing speed30 fps
- Infrared (IR) cameraYes
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 7 (802.11be)
- Wi-Fi standardsWi-Fi 7 (802.11be)
- Mobile network connectionNo
- WLAN controller modelKiller Wi-Fi 7 1750x
- Ethernet LANYes
- Ethernet LAN data rates2500 Mbit/s
- BluetoothYes
- Bluetooth version5.4
Ports & interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
- Ethernet LAN (RJ-45) ports1
- HDMI ports quantity1
- HDMI version2.1
- Thunderbolt 5 ports quantity2
- Intel® Thunderbolt 5Yes
- Combo headphone/mic portYes
- USB Type-C DisplayPort Alternate ModeYes
Performance
- Motherboard chipsetIntel HM870
Keyboard
- Pointing deviceTouchpad
- Numeric keypadNo
- Keyboard backlitYes
- Keyboard backlit colourRGB
- Keyboard backlit zonePer-key RGB
- Copilot keyYes
Software
- Operating system installedWindows 11 Pro
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Number of battery cells4
- Battery capacity99.9 Wh
Power
- AC adapter power400 W
- USB Power Delivery (USB PD)Yes
Security
- Cable lock slotYes
- Cable lock slot typeKensington
- Trusted Platform Module (TPM)Yes
- Trusted Platform Module (TPM) version2.0
Weight & dimensions
- Width404 mm
- Depth307.5 mm
- Height (front)2.4 cm
- Height (rear)3.21 cm
- Weight3.6 kg
Packaging content
- AC adapter includedYes
Other features
- Warranty period3 year(s)
