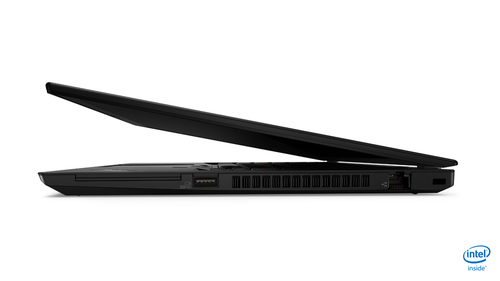

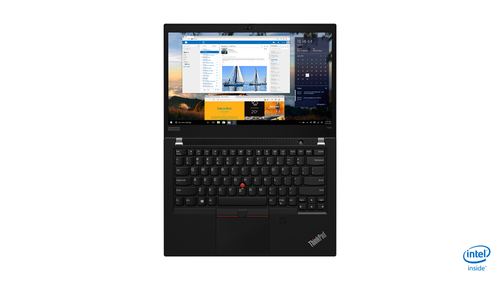

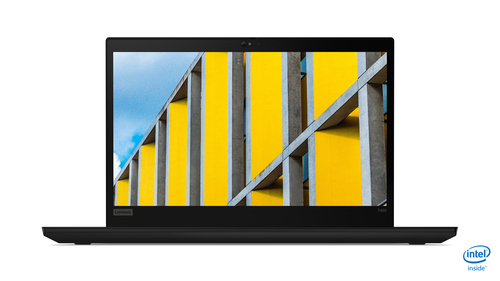

Lenovo

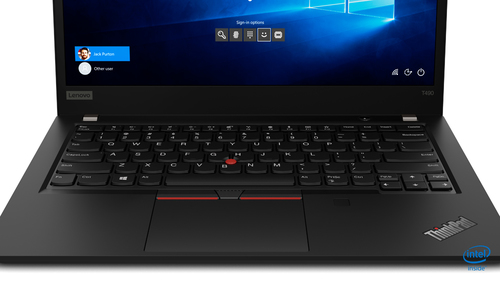

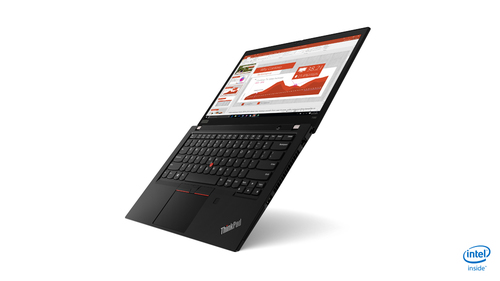

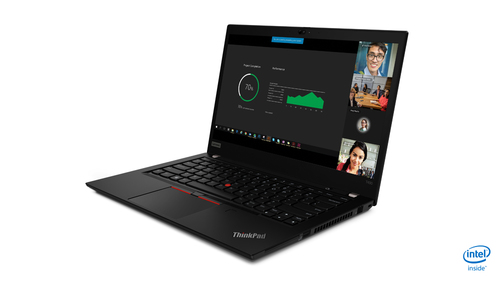

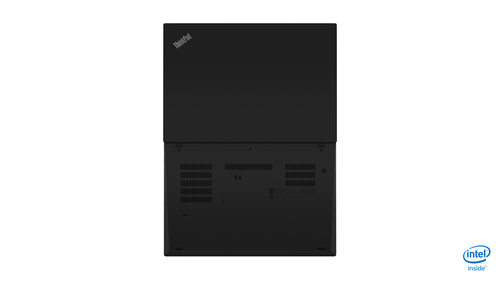

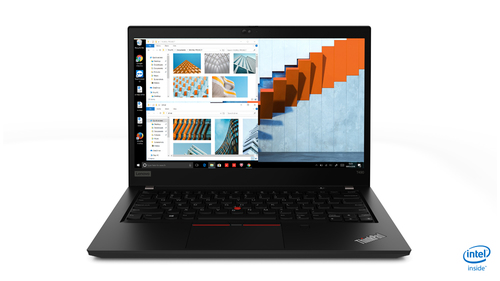

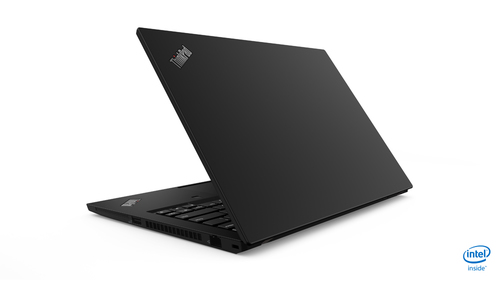

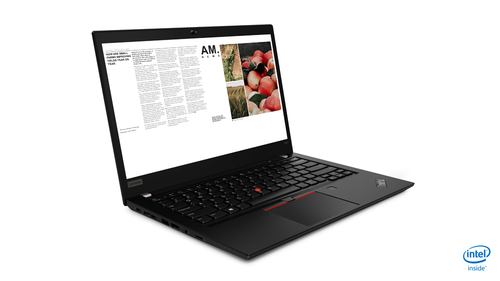

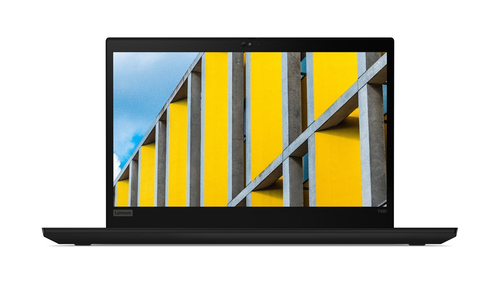

ThinkPad T490 (20N20009UK)
14" Display
i5-8265UCPU
8 GBRAM
256 GBStorage
Intel® UHD GraphicsGraphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Intel® vPro™ Platform EligibilityNo
Display
- Display diagonal35.6 cm (14")
- Display resolution1920 x 1080 pixels
- TouchscreenNo
- HD typeFull HD
- Panel typeIPS
- LED backlightYes
- Native aspect ratio16:9
- Display brightness250 cd/m²
- Contrast ratio (typical)700:1
Processor
- Processor manufacturerIntel
- Processor familyIntel® Core™ i5
- Processor generation8th gen Intel® Core™ i5
- Processor modeli5-8265U
- Processor cores4
- Processor threads8
- Processor boost frequency3.9 GHz
- Processor frequency1.6 GHz
- System bus rate4 GT/s
- Processor cache6 MB
- Processor cache typeSmart Cache
- Processor socketBGA 1528
- Processor lithography14 nm
- Processor operating modes64-bit
- Processor codenameWhiskey Lake
- Bus typeOPI
- Thermal Design Power (TDP)15 W
- Configurable TDP-up frequency1.8 GHz
- Configurable TDP-up25 W
- Configurable TDP-down10 W
- Configurable TDP-down frequency0.8 GHz
- Tjunction100 °C
- Maximum number of PCI Express lanes16
- PCI Express slots version3.0
- PCI Express configurations1x4, 2x2
- ECC supported by processorNo
Memory
- Internal memory8 GB
- Internal memory typeDDR4-SDRAM
- Memory clock speed2400 MHz
- Memory form factorOn-board + SO-DIMM
- Memory slots1x SO-DIMM
- Maximum internal memory48 GB
Storage
- Total storage capacity256 GB
- Storage mediaSSD
- Total SSDs capacity256 GB
- Number of SSDs installed1
- SSD capacity256 GB
- SSD interfaceNVMe, PCI Express
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
- Card reader integratedYes
- Compatible memory cardsMicroSD (TransFlash)
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- Discrete graphics cardNo
- On-board graphics card familyIntel® UHD Graphics
- On-board graphics card modelIntel® UHD Graphics
- On-board graphics card base frequency300 MHz
- On-board graphics card dynamic frequency (max)1100 MHz
- Maximum on-board graphics card memory32 GB
- On-board graphics card DirectX version12.0
- On-board graphics card OpenGL version4.5
- On-board graphics card ID0x3EA0
Audio
- Audio chipRealtek ALC3287
- Audio systemDolby Audio Premium
- Number of built-in speakers2
- Speaker power2 W
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera signal format720p
- Front camera HD typeHD
- Infrared (IR) cameraNo
- Auto focusNo
Optical drive
- LightScribeNo
Network
- Wi-FiYes
- Top Wi-Fi standardWi-Fi 5 (802.11ac)
- Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Antenna type2x2
- WLAN controller modelIntel Dual Band Wireless-AC 9560
- Ethernet LANYes
- Ethernet LAN data rates10,100,1000 Mbit/s
- BluetoothYes
- Bluetooth version5.0
- WWANNot installed
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
- Ethernet LAN (RJ-45) ports1
- HDMI ports quantity1
- HDMI version1.4b
- Headphone outputs1
- Combo headphone/mic portYes
- Docking connectorYes
- SmartCard slotYes
- USB Sleep-and-ChargeYes
- USB Sleep-and-Charge ports1
Keyboard
- Pointing deviceThinkPad UltraNav
- Numeric keypadNo
- Keyboard backlitYes
- Spill-resistant keyboardYes
- Windows keysYes
Software
- Operating system architecture64-bit
- Operating system installedWindows 10 Pro
Processor special features
- Intel® My WiFi Technology (Intel® MWT)Yes
- Intel® Smart Response TechnologyYes
- Intel® Identity Protection Technology (Intel® IPT)Yes
- Intel® Hyper Threading Technology (Intel® HT Technology)Yes
- Intel® Turbo Boost Technology2.0
- Enhanced Intel SpeedStep TechnologyYes
- Intel® Clear Video HD Technology (Intel® CVT HD)Yes
- Intel Clear Video TechnologyYes
- Intel® Quick Sync Video TechnologyYes
- Intel Flex Memory AccessYes
- Intel® AES New Instructions (Intel® AES-NI)Yes
- Intel Trusted Execution TechnologyNo
- Intel Enhanced Halt StateYes
- Intel VT-x with Extended Page Tables (EPT)Yes
- Intel® Secure KeyYes
- Intel TSX-NINo
- Intel Stable Image Platform Program (SIPP)No
- Intel® OS GuardYes
- Intel Software Guard Extensions (Intel SGX)Yes
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
- Intel 64Yes
- Execute Disable BitYes
- Idle StatesYes
- Thermal Monitoring TechnologiesYes
- Processor package size46x24 mm
- Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
- CPU configuration (max)1
- Embedded options availableNo
- Intel Virtualization Technology for Directed I/O (VT-d)Yes
- Intel Identity Protection Technology version1.00
- Intel Smart Response Technology version1.00
- Intel Stable Image Platform Program (SIPP) version0.00
- Intel Secure Key Technology version1.00
- Intel TSX-NI version0.00
- Intel Virtualization Technology (VT-x)Yes
- Processor ARK ID149088
Battery
- Battery technologyLithium Polymer (LiPo)
- Battery capacity50 Wh
- Battery life (max)16.11 h
- Fast chargingYes
Power
- AC adapter power65 W
Security
- Cable lock slotYes
- Fingerprint readerYes
- Trusted Platform Module (TPM)Yes
- Password protectionYes
- Password protection typeHDD, Power on, Supervisor
Sustainability
- Sustainability certificatesENERGY STAR
Weight & dimensions
- Width329 mm
- Depth227 mm
- Height17.9 mm
- Weight1.55 kg
Packaging content
- AC adapter includedYes
Other features
- 3DNo
