Lenovo

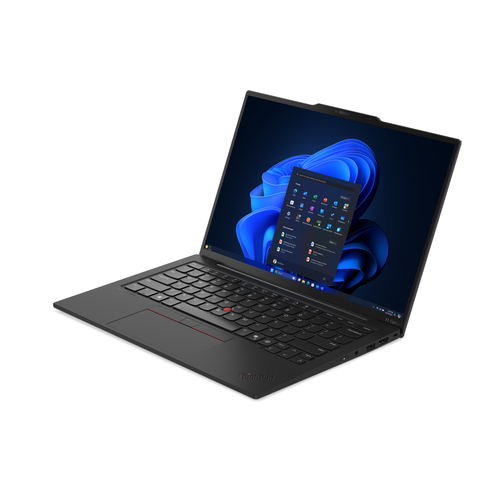

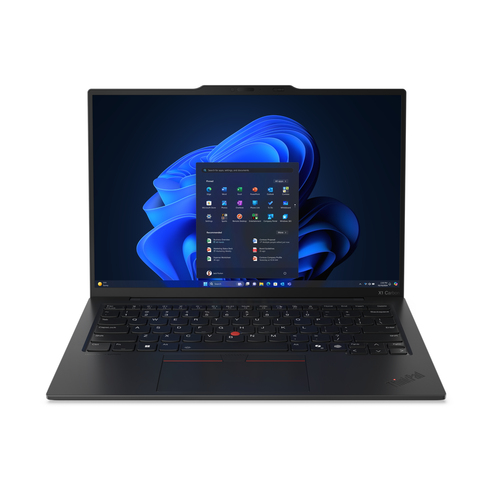

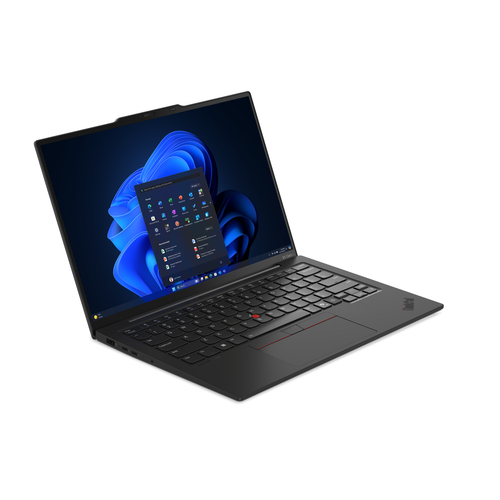

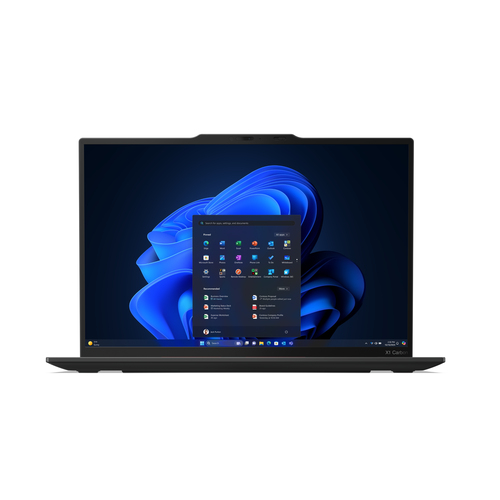

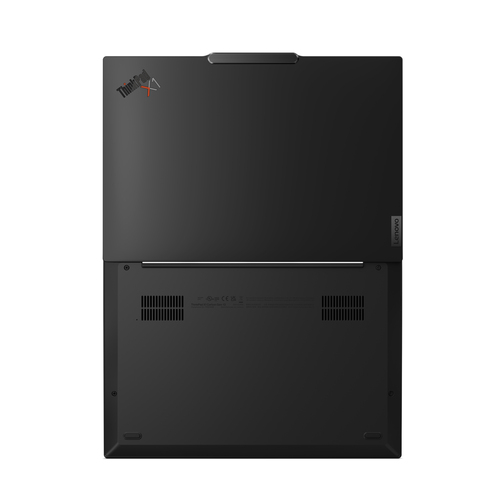

ThinkPad X1 Carbon Gen 13 Copilot+ PC
14" Display
258VScore: 18.941CPU
32 GBRAM
1 TBStorage
Intel Arc Graphics 140VScore: 5.000Graphics
Price History
Technical Specifications
Design
- Colour nameEclipse Black
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Housing materialMagnesium, Carbon fibre
- Market positioningPremium
Display
- Display diagonal35.6 cm (14")
- Display resolution2880 x 1800 pixels
- TouchscreenNo
- HD type2.8K
- Panel typeOLED
- Native aspect ratio16:10
- Anti-glare screenYes
- Anti-reflective coatingYes
- Anti-smudge coatingYes
- Display brightness400 cd/m²
- RGB colour spaceDCI-P3
- Colour gamut100%
- Low Blue Light technologyYes
- Maximum refresh rate120 Hz
- Contrast ratio (typical)100000:1
- High Dynamic Range (HDR) supportedYes
- High Dynamic Range (HDR) technologyDolby Vision, HDR True Black 500
Processor
- Processor manufacturerIntel
- Processor familyIntel Core Ultra 7
- Processor generationIntel Core Ultra (Series 2)
- Processor model258V
- Processor cores8
- Processor threads8
- Processor boost frequency4.8 GHz
- Performance cores4
- Low Power Efficient-cores4
- Performance-core Max Turbo Frequency4.8 GHz
- Low Power Efficient-core Max Turbo Frequency3.7 GHz
- Performance-core base frequency2.2 GHz
- Low Power Efficient-core Base Frequency2200 MHz
- Processor cache12 MB
- Processor cache typeSmart Cache
- Processor base power17 W
- Maximum turbo power37 W
Neural processor unit (NPU)
- Copilot+ PCYes
- Neural processor unit (NPU)Intel AI Boost
- Sparsity supportYes
- Windows Studio effects supportYes
- AI software frameworks supported by NPUDirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Total processor performance up to115 TOPs
- NPU performance up to47 TOPs
Memory
- Internal memory32 GB
- Internal memory typeLPDDR5x-SDRAM
- Memory form factorOn-board
- Maximum internal memory32 GB
- Memory channelsDual-channel
- Memory data transfer rate8533 MT/s
Storage
- Total storage capacity1 TB
- Storage mediaSSD
- Total SSDs capacity1 TB
- Number of SSDs installed1
- SSD capacity1 TB
- SSD memory typeTLC
- SSD interfacePCI Express 5.0
- SSD form factorM.2
- M.2 SSD size2280 (22 x 80 mm)
- Optical drive typeNo
- Card reader integratedNo
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardNo
- On-board graphics card familyIntel Arc Graphics
- On-board graphics card modelIntel Arc Graphics 140V
Audio
- Audio chipRealtek ALC713
- Audio systemDolby Atmos
- Number of built-in speakers2
- Built-in microphoneYes
- Number of microphones2
Camera
- Front cameraYes
- Front camera resolution1920 x 1080 pixels
- Front camera HD typeFull HD
- Infrared (IR) cameraYes
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 7 (802.11be)
- Wi-Fi standardsWi-Fi 7 (802.11be)
- Mobile network connectionNo
- Antenna type2x2
- WLAN controller modelIntel Wi-Fi 7 BE201
- WLAN controller manufacturerIntel
- BluetoothYes
- Bluetooth version5.3
- Near Field Communication (NFC)No
- WWANNot installed

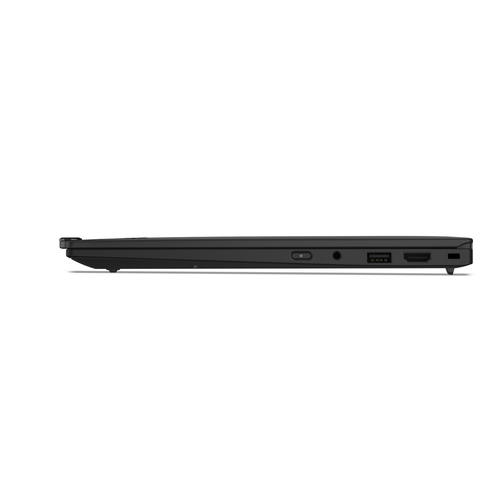

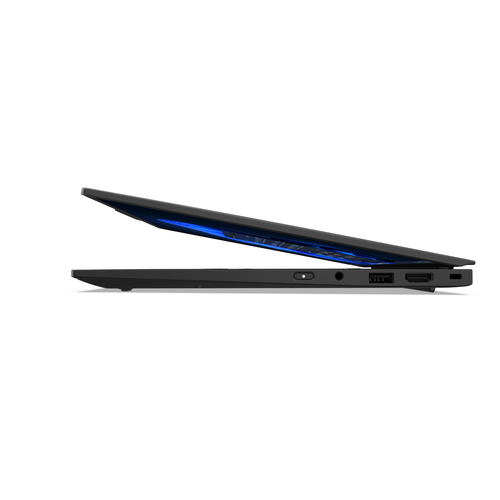

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- HDMI ports quantity1
- HDMI version2.1
- Thunderbolt 4 ports quantity2
- Intel® Thunderbolt 4Yes
- Combo headphone/mic portYes
- USB Type-C DisplayPort Alternate ModeYes
- USB Sleep-and-ChargeYes
- USB Sleep-and-Charge ports1
Performance
- Motherboard chipsetIntel SoC

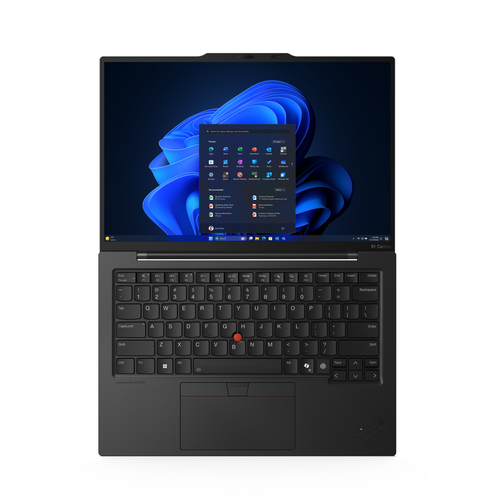

Keyboard
- Pointing deviceThinkPad UltraNav
- Numeric keypadNo
- Keyboard backlitYes
- Keyboard backlit colourWhite
- Spill-resistant keyboardYes
- Keyboard languageUS English
- Copilot keyYes
Software
- Operating system architecture64-bit
- Microsoft CopilotYes
- Operating system installedWindows 11 Pro
Battery
- Battery technologyLithium Polymer (LiPo)
- Battery capacity57 Wh
- Continuous video playback time (max)18.8 h
- Fast chargingYes
Power
- AC adapter power65 W
- AC adapter frequency50/60 Hz
- AC adapter input voltage100 - 240 V
- USB Power Delivery (USB PD)Yes
Security
- Cable lock slotYes
- Cable lock slot typeKensington
- Fingerprint readerYes
- Windows HelloYes
- Trusted Platform Module (TPM)Yes
- Trusted Platform Module (TPM) version2.0
- Password protectionYes
- Password protection typeBIOS, Power on, Supervisor
Operational conditions
- Operating temperature (T-T)5 - 35 °C
- Storage temperature (T-T)5 - 43 °C
- Operating relative humidity (H-H)8 - 95%
- Storage relative humidity (H-H)5 - 95%
- Maximum shipping altitude3048 m
Certificates
- CertificationEyesafe MIL-STD-810H TCO 9 Zoom Certified – Premium Laptop
Sustainability
- Sustainability certificatesENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC)
Weight & dimensions
- Width312.8 mm
- Depth214.8 mm
- Height (front)8.08 mm
- Height (rear)1.44 cm
- Weight986 g
