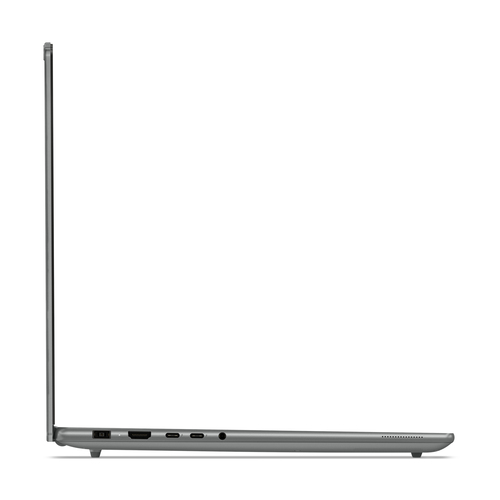

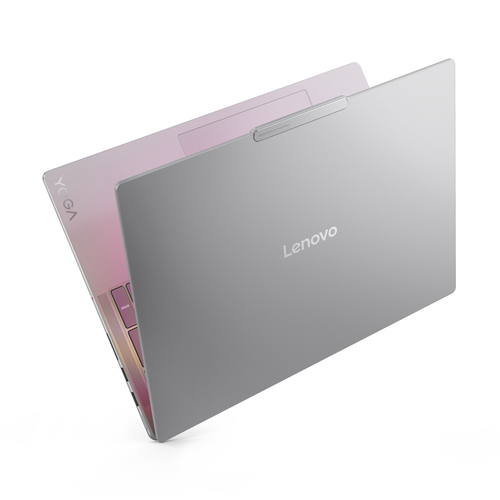

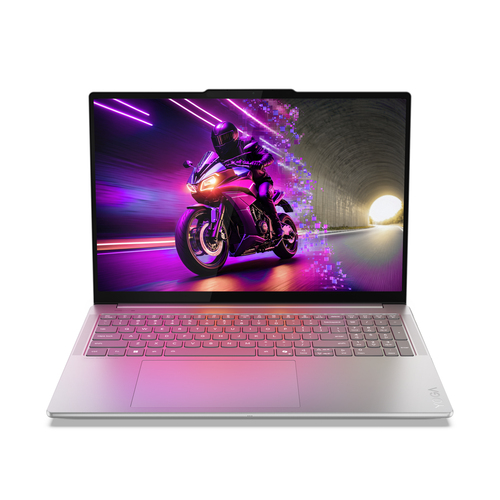

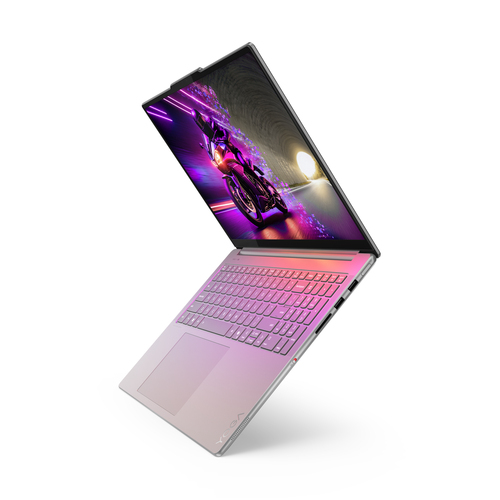

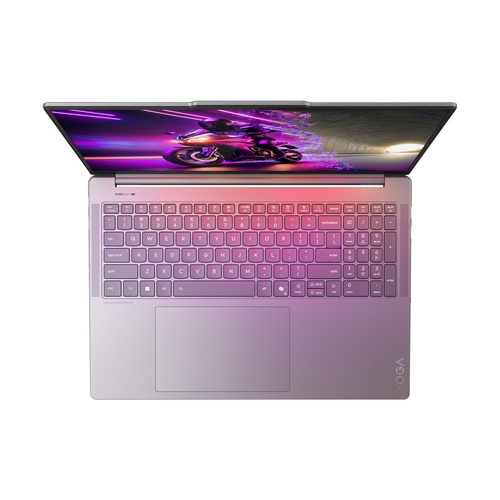

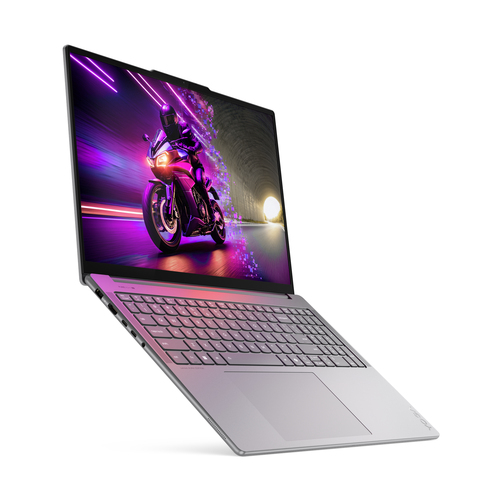

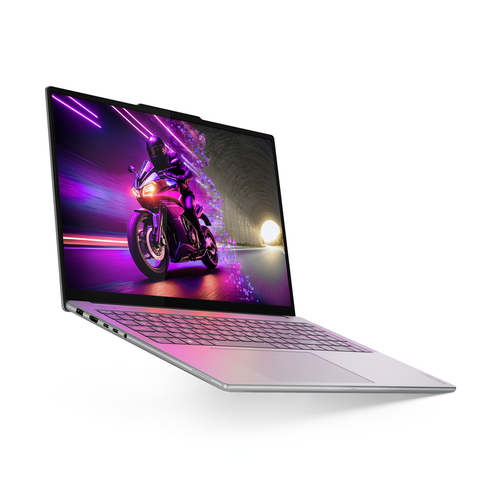

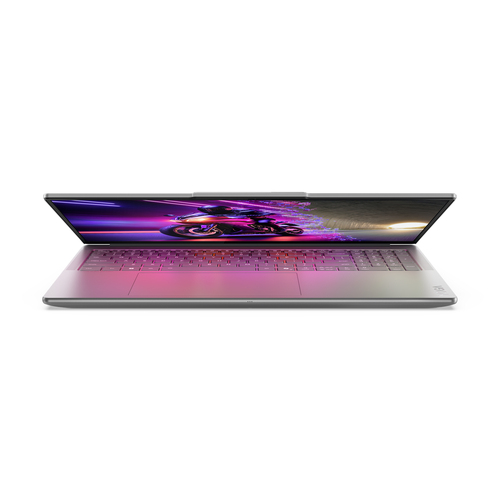

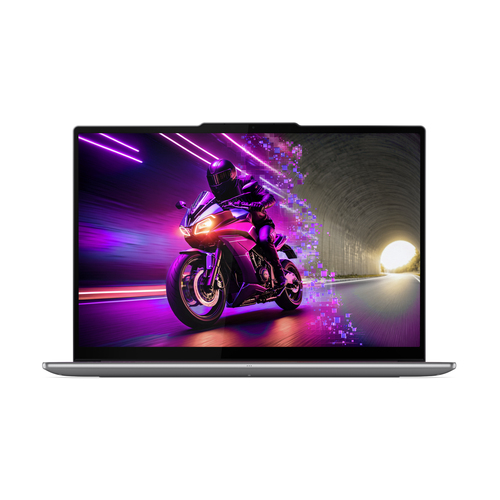

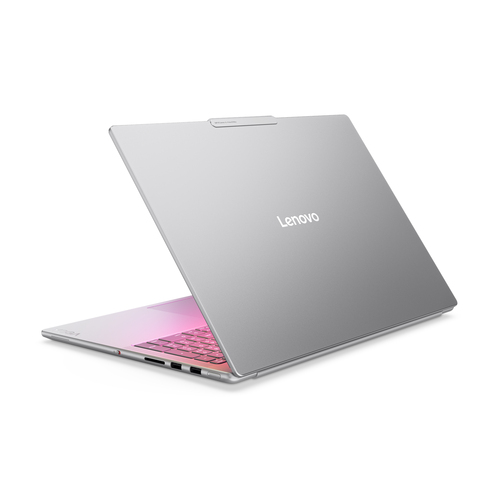

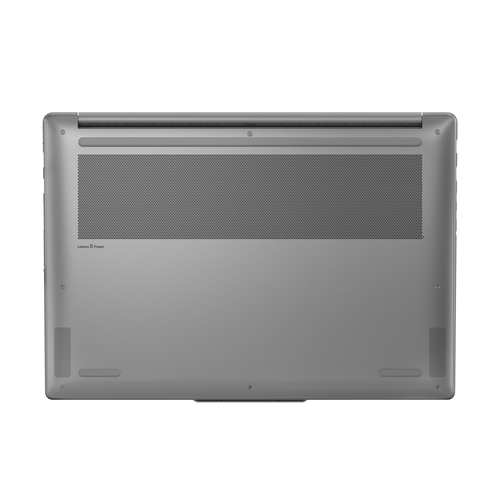

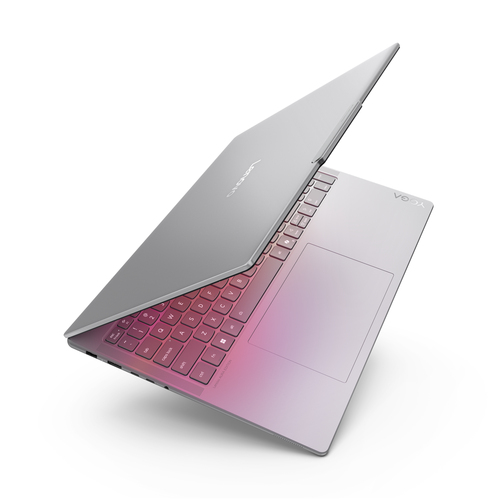

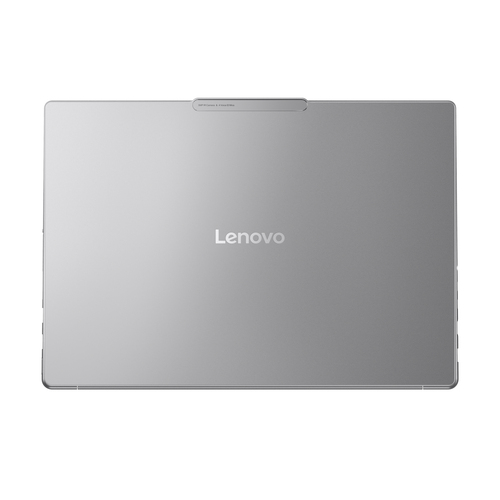

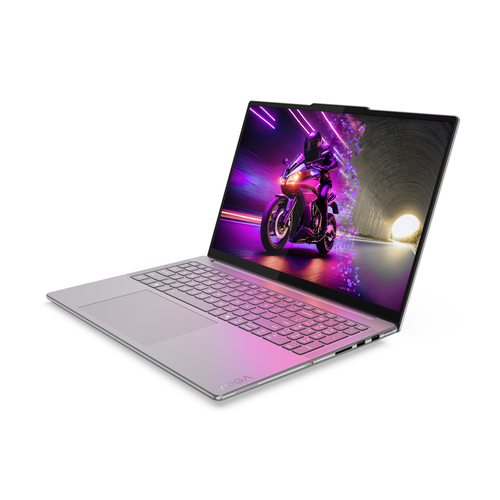

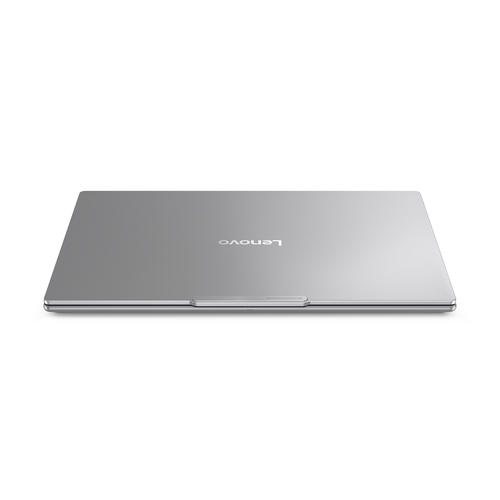

Lenovo
Yoga Pro 9 16IAH10
16" Display
285HScore: 34.256CPU
32 GBRAM
1 TBStorage
NVIDIA GeForce RTX 5060Score: 18.000Graphics
Price History
Technical Specifications
Design
- Colour nameLuna Grey
- Product typeLaptop
- Product colourGrey
- Form factorClamshell
- Housing materialAluminium
Display
- Display diagonal40.6 cm (16")
- Display resolution3200 x 2000 pixels
- TouchscreenYes
- HD type3.2K
- Panel typeOLED
- LED backlightYes
- Native aspect ratio16:10
- Display surfaceGloss
- Maximum display brightness (HDR)1600 cd/m²
- Standard Dynamic Range (SDR) brightness1000 cd/m²
- RGB colour spacesRGB
- Colour gamut100%
- Maximum refresh rate120 Hz
- Contrast ratio (typical)1000000:1
- High Dynamic Range (HDR) supportedYes
- High Dynamic Range (HDR) technologyDisplayHDR True Black 1000, Dolby Vision
Processor
- Processor manufacturerIntel
- Processor familyIntel Core Ultra 9
- Processor generationIntel Core Ultra (Series 2)
- Processor model285H
- Processor cores16
- Processor threads16
- Processor boost frequency5.4 GHz
- Performance cores6
- Efficient cores8
- Low Power Efficient-cores2
- Performance-core Max Turbo Frequency5.4 GHz
- Efficient-core Max Turbo Frequency4.5 GHz
- Low Power Efficient-core Max Turbo Frequency2.5 GHz
- Performance-core base frequency2.9 GHz
- Efficient-core base frequency2.7 GHz
- Low Power Efficient-core Base Frequency1000 MHz
- Processor cache24 MB
- Processor base power45 W
- Maximum turbo power115 W
Neural processor unit (NPU)
- Neural processor unit (NPU)Intel AI Boost
- Sparsity supportYes
- Windows Studio effects supportYes
- AI software frameworks supported by NPUDirectML, ONNX RT, OpenVINO, Windows ML
- Total processor performance up to99 TOPs
- NPU performance up to13 TOPs
- GPU performance up to77 TOPs
Memory
- Internal memory32 GB
- Internal memory typeLPDDR5x-SDRAM
- Memory clock speed8400 MHz
- Memory form factorOn-board
- Maximum internal memory32 GB
- Memory channelsDual-channel
Storage
- Total storage capacity1 TB
- Storage mediaSSD
- Total SSDs capacity1 TB
- Number of SSDs installed1
- SSD capacity1 TB
- SSD interfacePCI Express 4.0
- NVMeYes
- SSD form factorM.2
- M.2 SSD size2242 (22 x 42 mm)
- Optical drive typeNo
- Card reader integratedYes
- Compatible memory cardsSD
Graphics
- Discrete GPU manufacturerNVIDIA
- Discrete graphics card modelNVIDIA GeForce RTX 5060
- Discrete graphics card memory8 GB
- Discrete graphics memory typeGDDR7
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardYes
- On-board graphics card familyIntel Arc Graphics
- On-board graphics card modelIntel Arc 140T
Audio
- Audio chipRealtek ALC3306
- Audio systemDolby Atmos
- Number of built-in speakers6
- Built-in microphoneYes
- Number of microphones4
Camera
- Front cameraYes
- Front camera resolution (numeric)5 MP
- Infrared (IR) cameraYes
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 7 (802.11be)
- Wi-Fi standardsWi-Fi 7 (802.11be)
- Mobile network connectionNo
- Antenna type2x2
- Ethernet LANNo
- BluetoothYes
- Bluetooth version5.4
- WWANNot installed

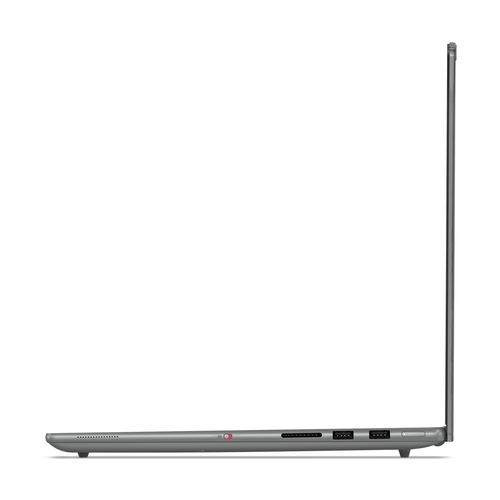

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- HDMI ports quantity1
- HDMI version2.1
- Thunderbolt 4 ports quantity2
- Intel® Thunderbolt 4Yes
- Combo headphone/mic portYes
- USB Type-C DisplayPort Alternate ModeYes
- USB Sleep-and-ChargeYes
- USB Sleep-and-Charge ports1
Performance
- Motherboard chipsetIntel SoC
Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
- Keyboard backlitYes
- Keyboard languageEnglish
- Copilot keyYes
Software
- Operating system architecture64-bit
- Operating system languageEnglish
- Trial softwareOffice
- Operating system installedWindows 11 Pro
- Bundled softwareOffice Trial + Lenovo AI Now
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Battery capacity84 Wh
- Battery life (max)5.5 h
- Continuous video playback time (max)14 h
- Fast chargingYes
Power
- AC adapter power170 W
- AC adapter frequency50/60 Hz
- AC adapter input voltage100 - 240 V
- USB Type-C charging portYes
- USB Type-C required charging power (min)65 W
- USB Type-C required charging power (max)100 W
- USB Power Delivery (USB PD)Yes
Security
- Fingerprint readerNo
- Windows HelloYes
- Trusted Platform Module (TPM)Yes
- Trusted Platform Module (TPM) version2.0
- Password protectionYes
- Password protection typeBIOS, HDD
Operational conditions
- Operating temperature (T-T)5 - 35 °C
- Storage temperature (T-T)5 - 43 °C
- Operating relative humidity (H-H)8 - 95%
- Storage relative humidity (H-H)5 - 95%
- Maximum shipping altitude3048 m
Certificates
- Compliance certificatesRoHS
- CertificationCarbon Neutral Certified ErP Lot 6/26 Intel Evo Platform Eyesafe Certified 2.0 TÜV Rheinland Low Blue Light (Hardware Solution)
Sustainability
- Sustainability certificatesENERGY STAR, EPEAT Gold
Weight & dimensions
- Width362.7 mm
- Depth253.7 mm
- Height17.9 mm
- Weight2.07 kg
Packaging content
- AC adapter includedYes
