Lenovo

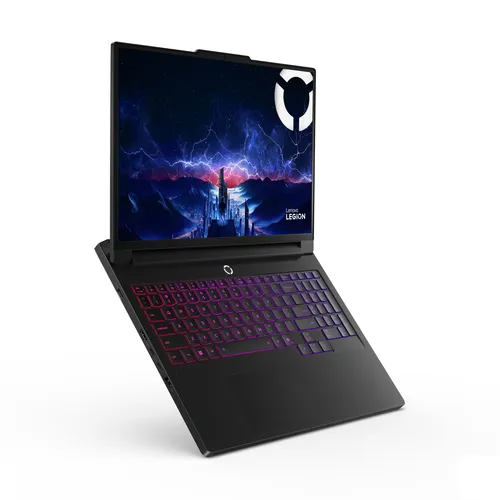

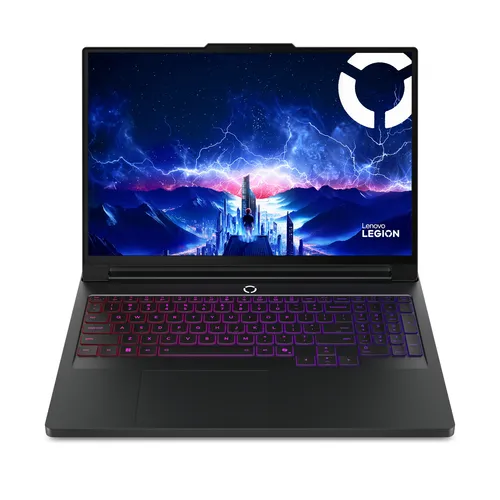

Legion Pro 7 16IAX10H (83F50014US)
16" Display
275HXCPU
32 GBRAM
2 TBStorage
NVIDIA GeForce RTX 5080Graphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Colour nameEclipse black
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Housing materialAluminium
- Market positioningGaming
Display
- Display diagonal40.6 cm (16")
- Display resolution2560 x 1600 pixels
- TouchscreenNo
- HD typeWQXGA
- Panel typeOLED
- LED backlightYes
- Native aspect ratio16:10
- Display surfaceGloss
- Display brightness500 cd/m²
- RGB colour spaceDCI-P3
- Colour gamut100%
- Maximum refresh rate240 Hz
- Contrast ratio (typical)1000000:1
- High Dynamic Range (HDR) supportedYes
- High Dynamic Range (HDR) technologyDolby Vision
Processor
- Processor manufacturerIntel
- Processor familyIntel Core Ultra 9
- Processor generationIntel Core Ultra (Series 2)
- Processor model275HX
- Processor cores24
- Processor threads24
- Processor boost frequency5.4 GHz
- Performance cores8
- Efficient cores16
- Performance-core Max Turbo Frequency5.4 GHz
- Efficient-core Max Turbo Frequency4.6 GHz
- Performance-core base frequency2.7 GHz
- Efficient-core base frequency2.1 GHz
- Processor cache36 MB
- Processor base power55 W
- Maximum turbo power160 W
Neural processor unit (NPU)
- Neural processor unit (NPU)Intel AI Boost
- Sparsity supportYes
- Windows Studio effects supportYes
- AI software frameworks supported by NPUDirectML, OpenVINO, Windows ML, ONNX RT, WebNN
- Total processor performance up to36 TOPs
- NPU performance up to13 TOPs
- GPU performance up to8 TOPs
Memory
- Internal memory32 GB
- Internal memory typeDDR5-SDRAM
- Memory clock speed6400 MHz
- Memory form factorSO-DIMM
- Memory layout (slots x size)2 x 16 GB
- Memory slots2x SO-DIMM
- Maximum internal memory32 GB
- Memory channelsDual-channel
Storage
- Total storage capacity2 TB
- Storage mediaSSD
- Total SSDs capacity2 TB
- Number of SSDs installed2
- SSD capacity1 TB
- SSD interfacePCI Express 4.0
- NVMeYes
- SSD form factorM.2
- M.2 SSD size2280 (22 x 80 mm)
- Optical drive typeNo
- Card reader integratedNo
Graphics
- Discrete GPU manufacturerNVIDIA
- Discrete graphics card modelNVIDIA GeForce RTX 5080
- Discrete graphics card memory16 GB
- Discrete graphics memory typeGDDR7
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardYes
- On-board graphics card familyIntel® Graphics
- On-board graphics card modelIntel® Graphics
- NVIDIA G-SYNCYes
Audio
- Audio chipRealtek ALC3306
- Audio systemNahimic Audio
- Number of built-in speakers4
- Built-in microphoneYes
- Number of microphones2
Camera
- Front cameraYes
- Front camera resolution (numeric)5 MP
- Privacy cameraYes
Network
- Top Wi-Fi standardWi-Fi 7 (802.11be)
- Wi-Fi standardsWi-Fi 7 (802.11be)
- Mobile network connectionNo
- Antenna type2x2
- Ethernet LANYes
- Ethernet LAN data rates2500 Mbit/s
- BluetoothYes
- Bluetooth version5.4
- WWANNot installed
- LAN controllerIntel I226-V
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
- Ethernet LAN (RJ-45) ports1
- HDMI ports quantity1
- HDMI version2.1
- Combo headphone/mic portYes
- USB Sleep-and-ChargeYes
- USB Sleep-and-Charge ports1
Performance
- Motherboard chipsetIntel HM870
Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
- Keyboard backlitYes
- Keyboard backlit colourRGB
- Keyboard backlit zonePer-key RGB
- Keyboard languageEnglish
- Copilot keyYes
Software
- Operating system languageEnglish
- Operating system installedWindows 11 Home
- Bundled softwareOffice Trial
Battery
- Battery technologyLithium Polymer (LiPo)
- Battery capacity99.9 Wh
- Battery life (max)2.85 h
- Continuous video playback time (max)6.25 h
- Fast chargingYes
Power
- AC adapter power400 W
- AC adapter frequency50/60 Hz
- AC adapter input voltage100 - 240 V
- USB Type-C charging portYes
- USB Power Delivery (USB PD)Yes
Security
- Fingerprint readerNo
- Trusted Platform Module (TPM)Yes
- Trusted Platform Module (TPM) version2.0
- Password protectionYes
- Password protection typeBIOS, Power on, SSD
Operational conditions
- Operating temperature (T-T)5 - 35 °C
- Storage temperature (T-T)5 - 43 °C
- Operating relative humidity (H-H)8 - 95%
- Storage relative humidity (H-H)5 - 95%
- Maximum shipping altitude3048 m
Certificates
- Compliance certificatesRoHS
- CertificationErP Lot 3 TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution)
Weight & dimensions
- Width364.4 mm
- Depth275.9 mm
- Height (front)2.19 cm
- Height (rear)2.67 cm
- Weight2.57 kg
Packaging content
- AC adapter includedYes
Other features
- Wake-on-LAN readyYes
