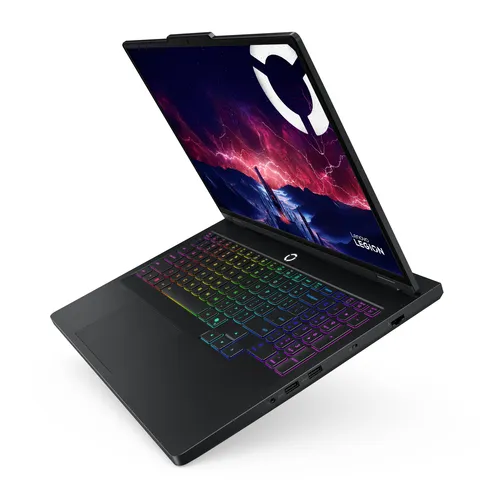

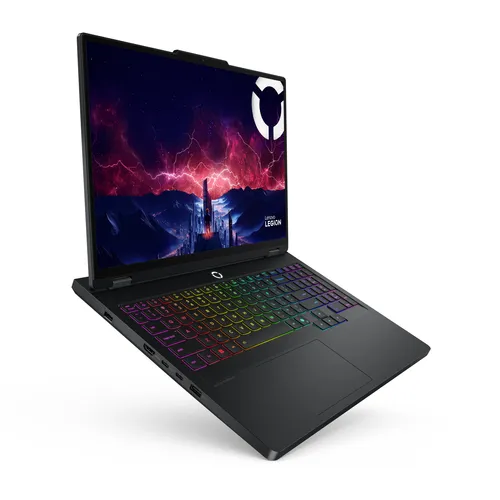

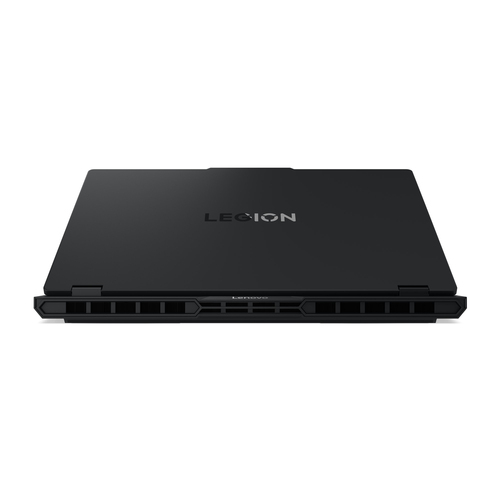

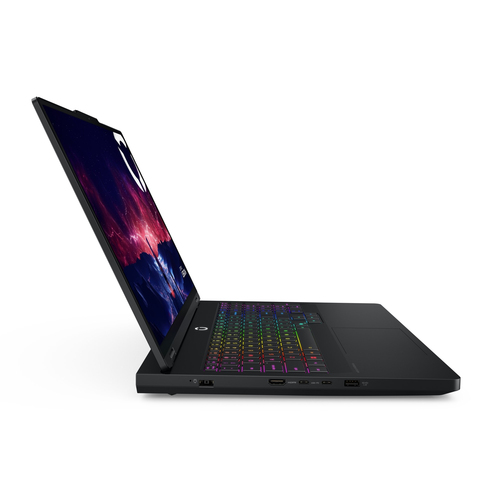

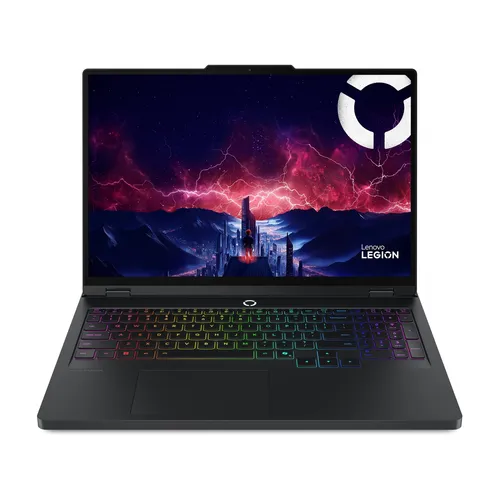

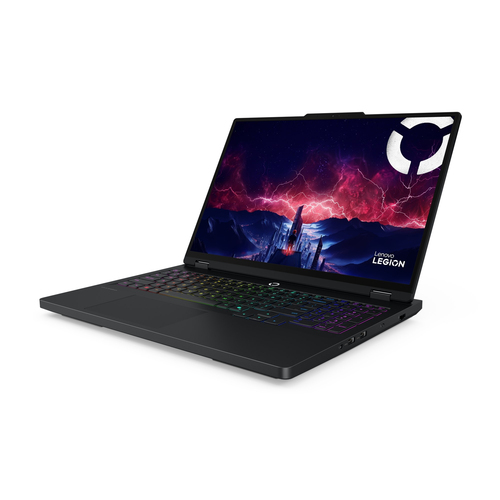

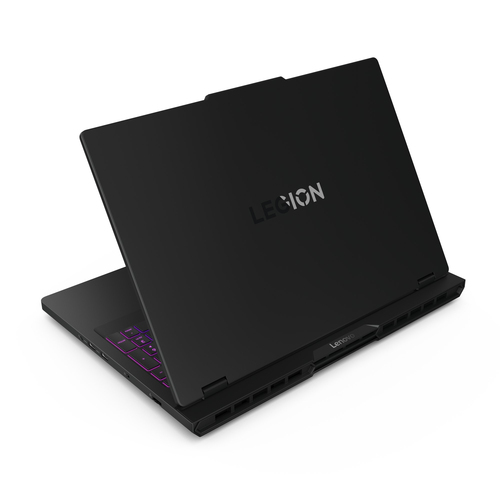

Lenovo
Legion Pro 5 16AFR10 (83F20003UK)
16" Display
9955HXCPU
32 GBRAM
1 TBStorage
NVIDIA GeForce RTX 5070Graphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Colour nameEclipse Black
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Housing materialAcrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
- Introduction year2025
- Introduction monthJuly
Display
- Display diagonal40.6 cm (16")
- Display resolution2560 x 1600 pixels
- TouchscreenNo
- HD typeWQXGA
- Panel typeOLED
- LED backlightYes
- Native aspect ratio16:10
- Display surfaceGloss
- Display brightness500 cd/m²
- RGB colour spaceDCI-P3
- Colour gamut100%
- Maximum refresh rate165 Hz
- High Dynamic Range (HDR) supportedYes
- High Dynamic Range (HDR) technologyDolby Vision
Processor
- Processor manufacturerAMD
- Processor familyAMD Ryzen™ 9
- Processor model9955HX
- Processor cores16
- Processor threads32
- Processor boost frequency5.4 GHz
- Processor frequency2.5 GHz
- Processor cache64 MB
Memory
- Internal memory32 GB
- Internal memory typeDDR5-SDRAM
- Memory clock speed5600 MHz
- Memory form factorSO-DIMM
- Memory layout (slots x size)2 x 16 GB
- Memory slots2x SO-DIMM
- Maximum internal memory32 GB
Storage
- Total storage capacity1 TB
- Storage mediaSSD
- Total SSDs capacity1 TB
- Number of SSDs installed1
- SSD capacity1 TB
- SSD interfacePCI Express 4.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
- Card reader integratedNo
Graphics
- Discrete GPU manufacturerNVIDIA
- Discrete graphics card modelNVIDIA GeForce RTX 5070
- Discrete graphics card memory8 GB
- Discrete graphics memory typeGDDR7
- On-board graphics cardYes
- On-board GPU manufacturerAMD
- Discrete graphics cardYes
- On-board graphics card familyAMD Radeon
- On-board graphics card modelAMD Radeon 610M
- NVIDIA Max-QYes
Audio
- Audio chipRealtek ALC3306
- Number of built-in speakers2
- Speakers manufacturerHarman Kardon
- Speaker power2 W
- Built-in microphoneYes
- Number of microphones2
Camera
- Front cameraYes
- Front camera resolution (numeric)5 MP
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 7 (802.11be)
- Wi-Fi standardsWi-Fi 7 (802.11be)
- Mobile network connectionNo
- Antenna type2x2
- Ethernet LANYes
- Ethernet LAN data rates100,1000 Mbit/s
- BluetoothYes
- Bluetooth version5.4
- WWANNot installed

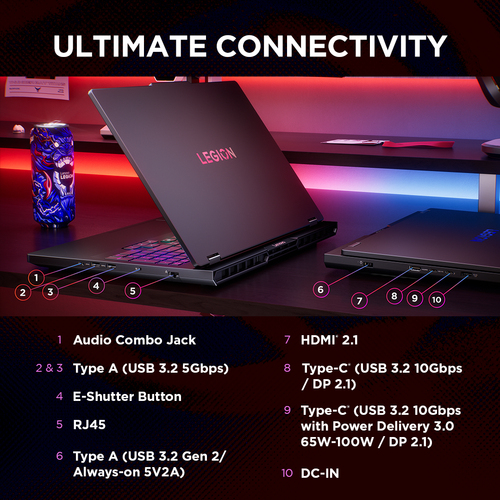

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
- Ethernet LAN (RJ-45) ports1
- HDMI ports quantity1
- HDMI version2.1
- Thunderbolt 4 ports quantity1
- Combo headphone/mic portYes
- USB Sleep-and-ChargeYes
Performance
- Virtual Reality (VR) readyYes
- Motherboard chipsetAMD SoC

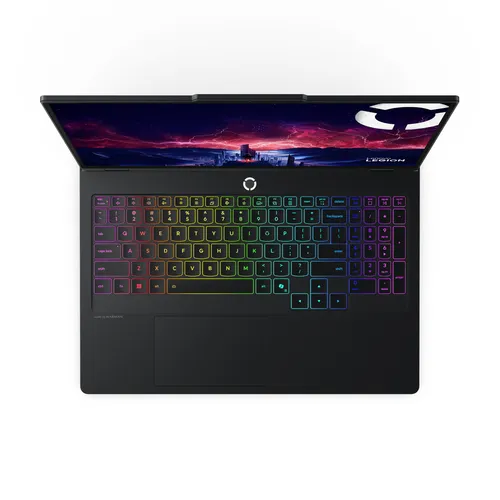

Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
- Keyboard backlitYes
- Keyboard backlit colourRGB
- Keyboard backlit zone24-zone RGB
- Keyboard languageEnglish
- Copilot keyYes
Software
- Operating system architecture64-bit
- Operating system languageEnglish
- Trial softwareOffice
- Operating system installedWindows 11 Home
Battery
- Battery technologyLithium Polymer (LiPo)
- Number of battery cells4
- Battery capacity80 Wh
- Fast chargingYes
Power
- AC adapter power245 W
- AC adapter frequency50/60 Hz
- AC adapter input voltage100 - 240 V
- USB Type-C charging portYes
- USB Power Delivery (USB PD)Yes
Security
- Fingerprint readerNo
- Trusted Platform Module (TPM)Yes
- Trusted Platform Module (TPM) version2.0
Operational conditions
- Operating temperature (T-T)5 - 35 °C
- Storage temperature (T-T)5 - 43 °C
- Operating relative humidity (H-H)8 - 95%
- Storage relative humidity (H-H)5 - 95%
Certificates
- CertificationRoHS
Weight & dimensions
- Width364.4 mm
- Depth268.1 mm
- Height (front)2.17 cm
- Height (rear)2.6 cm
- Weight2.5 kg
Packaging data
- Package width541 mm
- Package depth342 mm
- Package height83 mm
- Package weight4.18 kg
Packaging content
- AC adapter includedYes
Other features
- Warranty period1 year(s)
