LENOVO

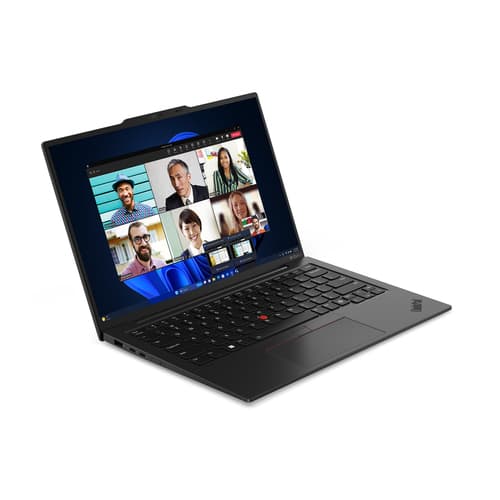

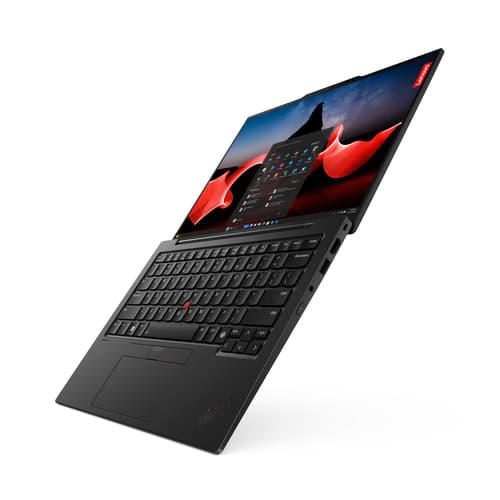

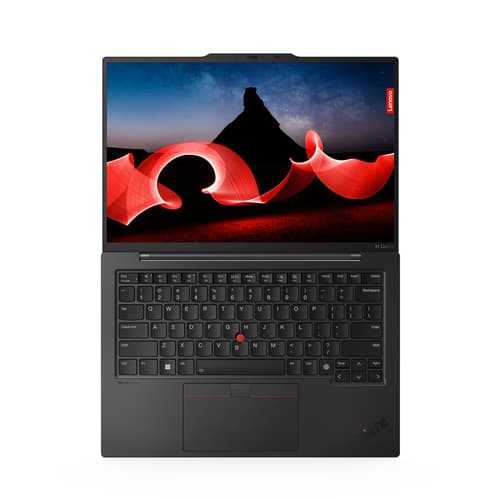

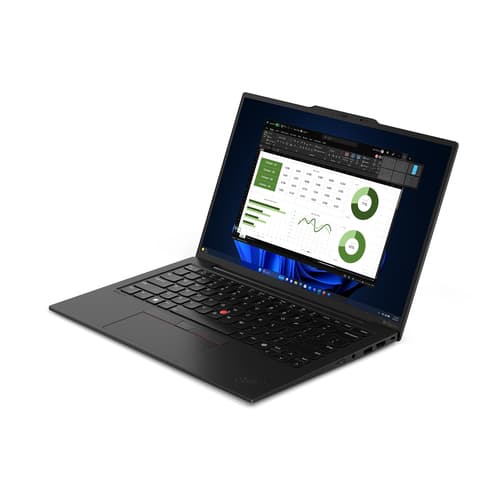

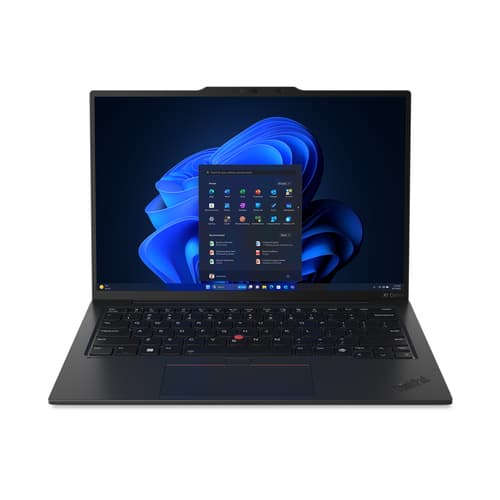

ThinkPad X1 Carbon Gen 12
Intel Core Ultra 5 125UCPU (Score: 16.788)
Intel GraphicsGPU (Score: 3.205)
30VALUE SCORE
16 GBRAM
512 GBSTORAGE
14" DISPLAY
Best Price
N/A
Price History
Loading price history...
Technical Specifications
Design
- Colour nameBlack, Paint
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Housing materialAluminium
Display
- Display diagonal35.6 cm (14")
- Display resolution1920 x 1200 pixels
- TouchscreenNo
- HD typeWUXGA
- Panel typeIPS
- LED backlightYes
- Native aspect ratio16:10
- Anti-glare screenYes
- Display brightness400 cd/m²
- RGB colour spacesRGB
- Colour gamut100%
- Maximum refresh rate60 Hz
Processor
- Processor manufacturerIntel
- Processor familyIntel Core Ultra 5
- Processor generationIntel® Core™ Ultra (Series 1)
- Processor model125U
- Processor cores12
- Processor threads14
- Processor boost frequency4.3 GHz
- Performance cores2
- Efficient cores8
- Low Power Efficient-cores2
- Performance-core Max Turbo Frequency4.3 GHz
- Efficient-core Max Turbo Frequency3.6 GHz
- Low Power Efficient-core Max Turbo Frequency2.1 GHz
- Performance-core base frequency1.3 GHz
- Efficient-core base frequency0.8 GHz
- Low Power Efficient-core Base Frequency700 MHz
- Processor cache12 MB
- Processor cache typeSmart Cache
- Processor base power15 W
- Maximum turbo power57 W
Neural processor unit (NPU)
- Neural processor unit (NPU)Intel AI Boost
- Maximum frequency NPU1.4 GHz
- Sparsity supportYes
- Windows Studio effects supportYes
- AI datatype support on NPUFP16, FP32, Int8
- AI software frameworks supported by NPUDirectML, ONNX RT, OpenVINO, Windows ML
Memory
- Internal memory16 GB
- Internal memory typeLPDDR5x-SDRAM
- Memory clock speed6400 MHz
- Memory form factorOn-board
- Maximum internal memory16 GB
Storage
- Total storage capacity512 GB
- Storage mediaSSD
- Total SSDs capacity512 GB
- Number of SSDs installed1
- SSD capacity512 GB
- SSD interfacePCI Express 4.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
- Card reader integratedNo
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardNo
- On-board graphics card familyIntel® Graphics
- On-board graphics card modelIntel® Graphics
Audio
- Audio chipRealtek ALC3306
- Number of built-in speakers2
- Speaker power2 W
- Built-in microphoneYes
- Number of microphones2
Camera
- Front cameraYes
- Front camera resolution1920 x 1080 pixels
- Front camera HD typeFull HD
- Infrared (IR) cameraYes
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- Wi-Fi standardsWi-Fi 6E (802.11ax)
- Mobile network connectionNo
- Antenna type2x2
- WLAN controller modelIntel Wi-Fi 6E AX211
- WLAN controller manufacturerIntel
- BluetoothYes
- Bluetooth version5.3
- Near Field Communication (NFC)Yes
- WWANUpgradable
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- HDMI ports quantity1
- HDMI version2.1
- Thunderbolt 4 ports quantity2
- Intel® Thunderbolt 4Yes
- Combo headphone/mic portYes
- USB Sleep-and-ChargeYes
Performance
- Motherboard chipsetIntel SoC
Keyboard
- Pointing deviceThinkPad UltraNav
- Numeric keypadNo
- Keyboard backlitYes
- Keyboard languageEnglish
Software
- Operating system architecture64-bit
- Operating system installedWindows 11 Pro
- Bundled softwareIntel Connectivity Performance Suite
Battery
- Battery technologyLithium Polymer (LiPo)
- Battery capacity57 Wh
Power
- AC adapter power65 W
- AC adapter frequency50/60 Hz
- AC adapter input voltage100 - 240 V
Security
- Cable lock slotYes
- Cable lock slot typeKensington
- Fingerprint readerYes
- Smart card readerNo
- Windows HelloYes
- Trusted Platform Module (TPM)Yes
- Trusted Platform Module (TPM) version2.0
Operational conditions
- Operating temperature (T-T)5 - 35 °C
- Storage temperature (T-T)5 - 43 °C
- Operating relative humidity (H-H)8 - 95%
- Storage relative humidity (H-H)5 - 95%
Weight & dimensions
- Depth214.8 mm
- Height15 mm
- Weight1.08 kg
Product Identifiers
- Manufacturer Part No (MPN)21KC004UUK
- Barcode (EAN)0197530373640
