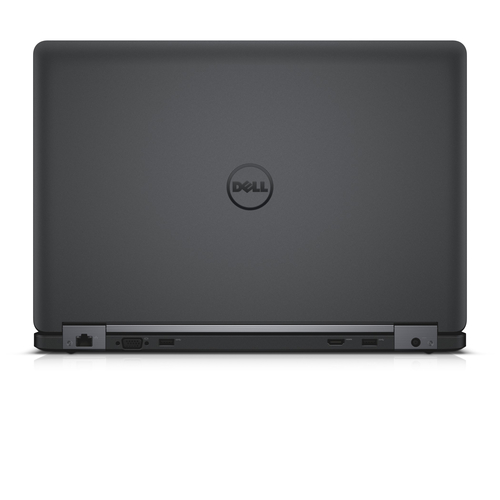

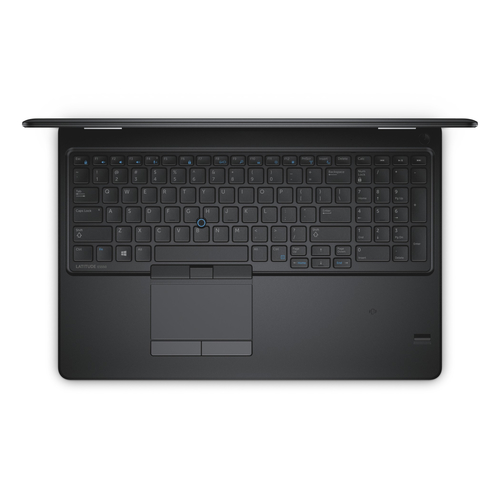

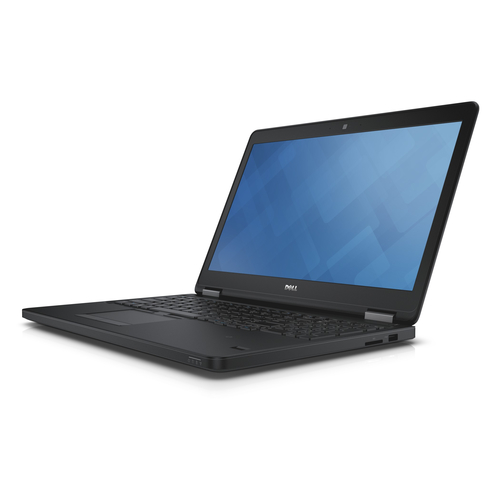

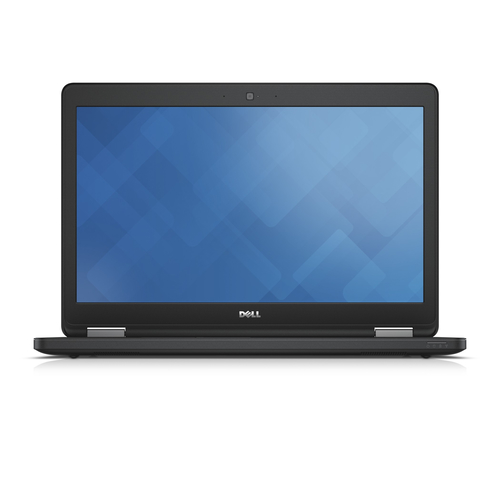

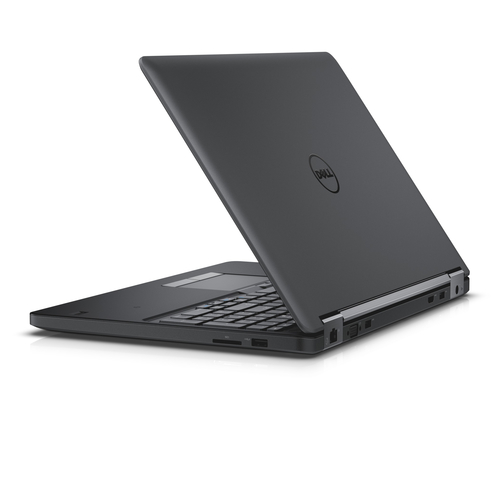

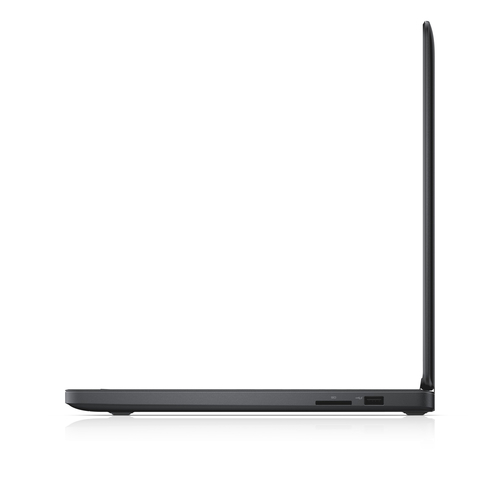

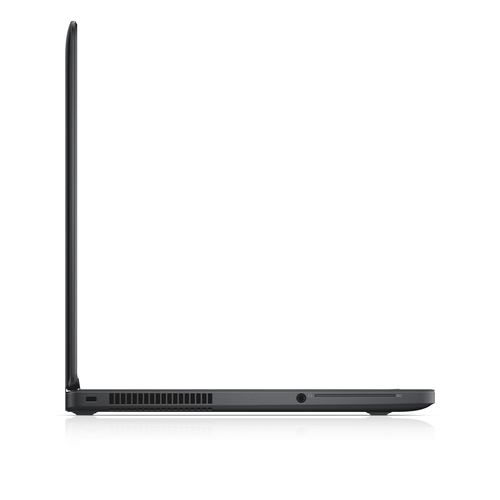

E5550 main view
E5550 thumbnail 1
E5550 thumbnail 2
E5550 thumbnail 3
E5550 thumbnail 4
E5550 thumbnail 5
E5550 thumbnail 6
E5550 thumbnail 7
E5550 slide 1
E5550 slide 2
E5550 slide 3
E5550 slide 4
E5550 slide 5
E5550 slide 6
E5550 slide 7
DELL

E5550

Intel Core i5-5300U @ 2.30GHzCPU (Score: 2.696)
Intel HD 5500GPU (Score: 596)
N/AVALUE SCORE
8 GBRAM
500 GBSTORAGE
15.6" DISPLAY
Best Price
N/A

Price History

Loading price history...

Technical Specifications

Design

  • Product typeLaptop
  • Product colourGrey
  • Form factorClamshell

Display

  • Display diagonal39.6 cm (15.6")
  • Display resolution1920 x 1080 pixels
  • HD typeFull HD
  • LED backlightYes
  • Native aspect ratio16:9

Processor

  • Processor manufacturerIntel
  • Processor familyIntel® Core™ i5
  • Processor generation5th gen Intel® Core™ i5
  • Processor modeli5-5300U
  • Processor cores2
  • Processor threads4
  • Processor boost frequency2.9 GHz
  • Processor frequency2.3 GHz
  • System bus rate5 GT/s
  • Processor cache3 MB
  • Processor cache typeL3
  • Processor socketBGA 1168
  • Processor lithography14 nm
  • Processor operating modes32-bit, 64-bit
  • Processor seriesIntel® Core™ i5-5300 Mobile Series
  • Processor codenameBroadwell
  • Bus typeDMI2
  • FSB ParityNo
  • SteppingF0
  • Thermal Design Power (TDP)15 W
  • Configurable TDP-down7.5 W
  • Configurable TDP-down frequency0.6 GHz
  • Tjunction105 °C
  • Maximum number of PCI Express lanes12
  • PCI Express slots version2.0
  • PCI Express configurations4x1, 2x4
  • ECC supported by processorNo

Memory

  • Internal memory8 GB
  • Internal memory typeDDR3L-SDRAM
  • Memory clock speed1600 MHz
  • Memory form factorSO-DIMM
  • Memory layout (slots x size)1 x 8 GB
  • Memory slots2x SO-DIMM
  • Maximum internal memory16 GB
  • Maximum internal memory (64-bit)16 GB

Storage

  • Total storage capacity500 GB
  • Optical drive typeNo
  • Card reader integratedYes
  • Compatible memory cardsSD

Graphics

  • Discrete graphics card modelNot available
  • On-board graphics cardYes
  • Discrete graphics cardNo
  • On-board graphics card familyIntel® HD Graphics
  • On-board graphics card modelIntel® HD Graphics 5500
  • On-board graphics card base frequency300 MHz
  • On-board graphics card dynamic frequency (max)900 MHz
  • Maximum on-board graphics card memory16 GB
  • On-board graphics card DirectX version11.2
  • On-board graphics card ID0x1616

Audio

  • Built-in microphoneYes

Camera

  • Front cameraYes

Optical drive

  • LightScribeNo

Network

  • Wi-FiYes
  • Ethernet LANYes
  • Ethernet LAN data rates10,100,1000 Mbit/s
  • BluetoothYes
  • Bluetooth version4.0
  • Bluetooth Low Energy (BLE)Yes

Ports & interfaces

  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
  • Ethernet LAN (RJ-45) ports1
  • HDMI ports quantity1
  • DVI portNo
  • VGA (D-Sub) ports quantity1
  • S/PDIF out portNo
  • Microphone inNo
  • Combo headphone/mic portYes
  • ExpressCard slotNo
  • CardBus PCMCIA slot typeNo
  • SmartCard slotYes
  • USB Sleep-and-ChargeYes
  • USB Sleep-and-Charge ports1

Keyboard

  • Pointing deviceTouchpad
  • Numeric keypadYes
  • Keyboard backlitYes
  • Full-size keyboardYes
  • Windows keysYes

Software

  • Operating system architecture64-bit
  • Recovery operating systemWindows 8.1
  • Operating system installedWindows 7 Professional

Processor special features

  • Intel® Wireless Display (Intel® WiDi)Yes
  • Intel® My WiFi Technology (Intel® MWT)No
  • Intel® Anti-Theft Technology (Intel® AT)No
  • Intel® Smart Response TechnologyYes
  • Intel® Identity Protection Technology (Intel® IPT)Yes
  • Intel® Hyper Threading Technology (Intel® HT Technology)Yes
  • Intel® Turbo Boost Technology2.0
  • Intel® Small Business Advantage (Intel® SBA)Yes
  • Intel® Virtualization Technology (Intel® VT)VT-d, VT-x
  • Enhanced Intel SpeedStep TechnologyYes
  • Intel® Clear Video HD Technology (Intel® CVT HD)Yes
  • Intel Clear Video TechnologyYes
  • Intel® InTru™ 3D TechnologyYes
  • Intel® Insider™Yes
  • Intel® Quick Sync Video TechnologyYes
  • Intel Flex Memory AccessYes
  • Intel® Smart CacheYes
  • Intel® AES New Instructions (Intel® AES-NI)Yes
  • Intel Trusted Execution TechnologyYes
  • Intel Enhanced Halt StateYes
  • Intel VT-x with Extended Page Tables (EPT)Yes
  • Intel Demand Based SwitchingNo
  • Intel® Secure KeyYes
  • Intel TSX-NIYes
  • Intel Stable Image Platform Program (SIPP)Yes
  • Intel® OS GuardYes
  • Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
  • Intel 64Yes
  • Execute Disable BitYes
  • Idle StatesYes
  • Thermal Monitoring TechnologiesYes
  • Processor package size40 x 24 x 1.3 mm
  • Supported instruction setsAVX 2.0
  • Processor codeSR23X
  • CPU configuration (max)1
  • Embedded options availableNo
  • Graphics & IMC lithography14 nm
  • Intel Virtualization Technology for Directed I/O (VT-d)Yes
  • Intel Identity Protection Technology version1.00
  • Intel Smart Response Technology version1.00
  • Intel Stable Image Platform Program (SIPP) version1.00
  • Intel Secure Key Technology version1.00
  • Intel Small Business Advantage (SBA) version1.00
  • Intel TSX-NI version1.00
  • Intel Virtualization Technology (VT-x)Yes
  • Intel Dual Display Capable TechnologyNo
  • Intel FDI TechnologyYes
  • Intel Rapid Storage TechnologyNo
  • Intel Fast Memory AccessYes
  • Processor ARK ID85213
  • Conflict-Free processorYes

Battery

  • Battery technologyLithium Polymer (LiPo)
  • Number of battery cells4
  • Battery capacity51 Wh

Power

  • DC-in jackYes

Security

  • Cable lock slotYes
  • Fingerprint readerYes

Sustainability

  • Sustainability certificatesEPEAT Gold, ENERGY STAR

Weight & dimensions

  • Width376.9 mm
  • Depth255.2 mm
  • Height23.4 mm

Packaging content

  • AC adapter includedYes
  • ManualYes
  • Quick start guideYes
  • Power cord includedYes

Other features

  • Intel segment taggingEnterprise

Product Identifiers

  • Manufacturer Part No (MPN)5550-6778
  • Barcode (EAN)05397063636778
