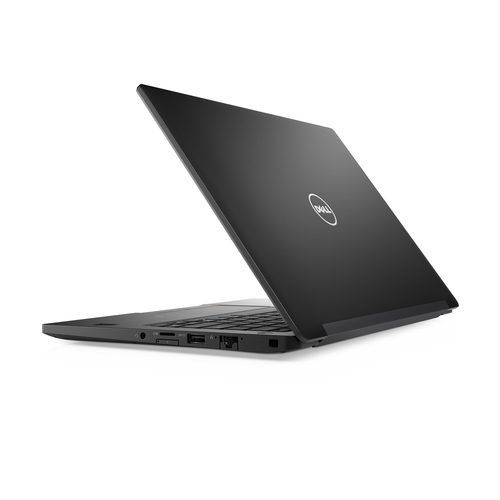

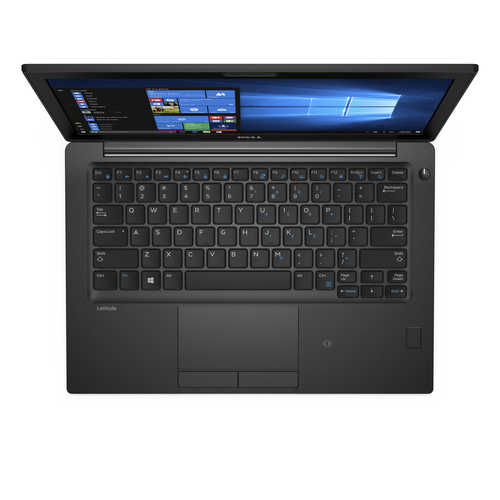

Dell
7280 (5GDFR)
12.5" Display
i5-7200UCPU
8 GBRAM
128 GBStorage
Intel® HD Graphics 620Graphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Market positioningBusiness
Display
- Display diagonal31.8 cm (12.5")
- Display resolution1366 x 768 pixels
- TouchscreenNo
- HD typeHD
- LED backlightYes
- Native aspect ratio16:9
Processor
- Processor manufacturerIntel
- Processor familyIntel® Core™ i5
- Processor generation7th gen Intel® Core™ i5
- Processor modeli5-7200U
- Processor cores2
- Processor threads4
- Processor boost frequency3.1 GHz
- Processor frequency2.5 GHz
- System bus rate4 GT/s
- Processor cache3 MB
- Processor cache typeSmart Cache
- Processor socketBGA 1356
- Processor lithography14 nm
- Processor operating modes64-bit
- Processor codenameKaby Lake
- Bus typeOPI
- SteppingH0
- Thermal Design Power (TDP)15 W
- Configurable TDP-up frequency2.7 GHz
- Configurable TDP-up25 W
- Configurable TDP-down7.5 W
- Configurable TDP-down frequency0.8 GHz
- Tjunction100 °C
- Maximum number of PCI Express lanes12
- PCI Express slots version3.0
- PCI Express configurations1x2+2x1, 1x4, 2x2, 4x1
- ECC supported by processorNo
Memory
- Internal memory8 GB
- Internal memory typeDDR4-SDRAM
- Memory clock speed2400 MHz
- Memory form factorSO-DIMM
- Memory slots1x SO-DIMM
- Maximum internal memory16 GB
- Maximum internal memory (64-bit)16 GB
Storage
- Total storage capacity128 GB
- Storage mediaSSD
- Number of SSDs installed1
- SSD capacity128 GB
- Optical drive typeNo
- Card reader integratedYes
- Compatible memory cardsSD
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- Discrete graphics cardNo
- On-board graphics card modelIntel® HD Graphics 620
- On-board graphics card base frequency300 MHz
- On-board graphics card dynamic frequency (max)1000 MHz
- Maximum on-board graphics card memory32 GB
- On-board graphics card DirectX version12.0
- On-board graphics card OpenGL version4.4
- On-board graphics card ID0x5916
Audio
- Audio chipRealtek ALC3246
- Number of built-in speakers2
- Speaker power2 W
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera resolution1280 x 720 pixels
- Video capturing speed30 fps
Network
- Wi-FiYes
- Top Wi-Fi standardWi-Fi 5 (802.11ac)
- Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Ethernet LANYes
- Ethernet LAN data rates10,100,1000 Mbit/s
- BluetoothYes
- Bluetooth version4.1
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Ethernet LAN (RJ-45) ports1
- HDMI ports quantity1
- HDMI version1.4
- DVI portNo
- Combo headphone/mic portYes
- Docking connectorNo
- USB Sleep-and-ChargeYes
- USB Sleep-and-Charge ports1
Performance
- Motherboard chipsetIntel SoC
Keyboard
- Pointing deviceTouchpad
- Numeric keypadNo
- Keyboard backlitYes
- Full-size keyboardYes
- Windows keysYes
Software
- Operating system architecture64-bit
- Drivers includedYes
- Operating system installedWindows 10 Pro
Processor special features
- Intel® Wireless Display (Intel® WiDi)Yes
- Intel® My WiFi Technology (Intel® MWT)Yes
- Intel® Smart Response TechnologyYes
- Intel® Identity Protection Technology (Intel® IPT)Yes
- Intel® Hyper Threading Technology (Intel® HT Technology)Yes
- Intel® Turbo Boost Technology2.0
- Intel® Small Business Advantage (Intel® SBA)Yes
- Enhanced Intel SpeedStep TechnologyYes
- Intel® Clear Video HD Technology (Intel® CVT HD)Yes
- Intel Clear Video TechnologyYes
- Intel® InTru™ 3D TechnologyYes
- Intel® Insider™Yes
- Intel® Quick Sync Video TechnologyYes
- Intel Flex Memory AccessYes
- Intel® AES New Instructions (Intel® AES-NI)Yes
- Intel Trusted Execution TechnologyNo
- Intel Enhanced Halt StateYes
- Intel VT-x with Extended Page Tables (EPT)Yes
- Intel® Secure KeyYes
- Intel TSX-NINo
- Intel Stable Image Platform Program (SIPP)No
- Intel® OS GuardYes
- Intel Software Guard Extensions (Intel SGX)Yes
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
- Intel 64Yes
- Execute Disable BitYes
- Idle StatesYes
- Thermal Monitoring TechnologiesYes
- Processor package size42 x 24 mm
- Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
- Processor codeSR2ZU
- CPU configuration (max)1
- Embedded options availableNo
- Graphics & IMC lithography14 nm
- Intel Virtualization Technology for Directed I/O (VT-d)Yes
- Intel Identity Protection Technology version1.00
- Intel Smart Response Technology version1.00
- Intel Stable Image Platform Program (SIPP) version0.00
- Intel Secure Key Technology version1.00
- Intel TSX-NI version0.00
- Intel Virtualization Technology (VT-x)Yes
- Processor ARK ID95443
- Conflict-Free processorYes
Battery
- Battery technologyLithium
- Number of battery cells4
- Battery capacity60 Wh
Power
- AC adapter power65 W
- AC adapter frequency50 - 60 Hz
- AC adapter input voltage100 - 240 V
- AC adapter output current3.34 A
- AC adapter output voltage19.5 V
- DC-in jackYes
Security
- Cable lock slotYes
- Cable lock slot typeNoble
- Password protectionYes
- Password protection typeBIOS, Supervisor, User
Operational conditions
- Operating temperature (T-T)0 - 60 °C
- Storage temperature (T-T)-51 - 71 °C
- Operating relative humidity (H-H)10 - 90%
- Storage relative humidity (H-H)5 - 95%
- Operating altitude-15.2 - 3048 m
- Non-operating altitude-15.2 - 10668 m
Sustainability
- Sustainability certificatesENERGY STAR
Weight & dimensions
- Width304.8 mm
- Depth207.9 mm
- Height17.9 mm
- Weight1.18 kg
Packaging content
- AC adapter includedYes
- ManualYes
- Quick start guideYes
- Power cord includedYes
Other features
- Intel segment taggingHome office, Small Business
