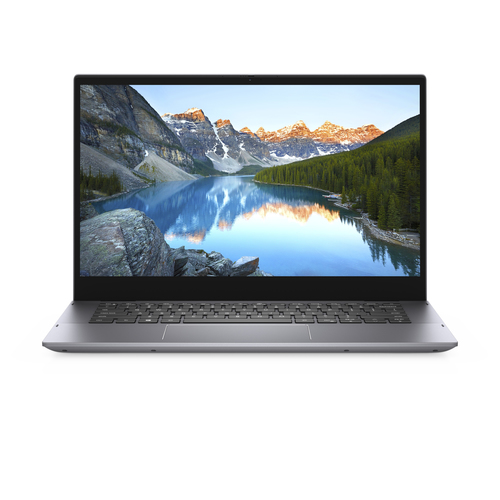

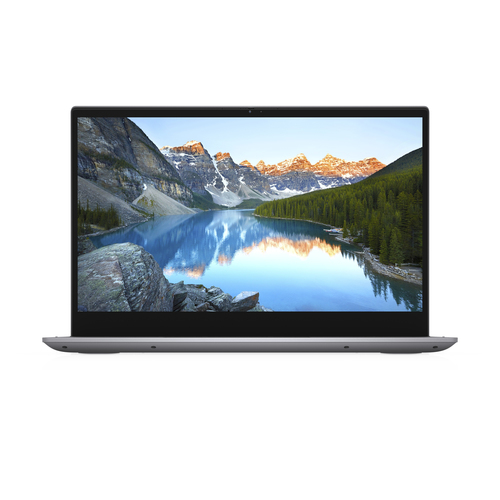

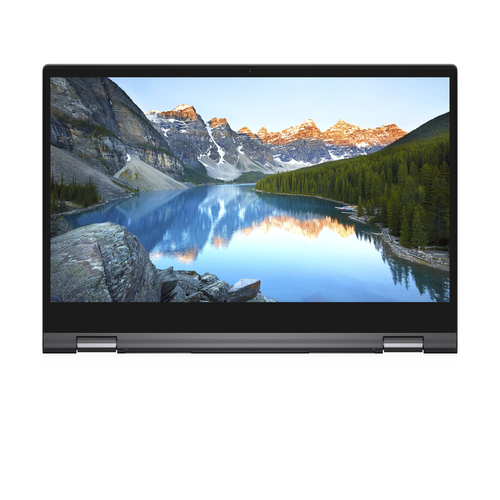

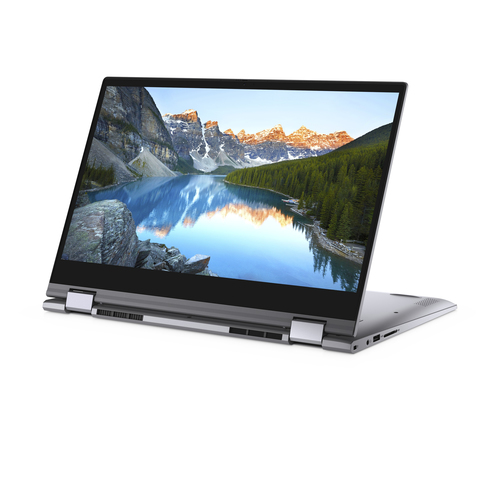

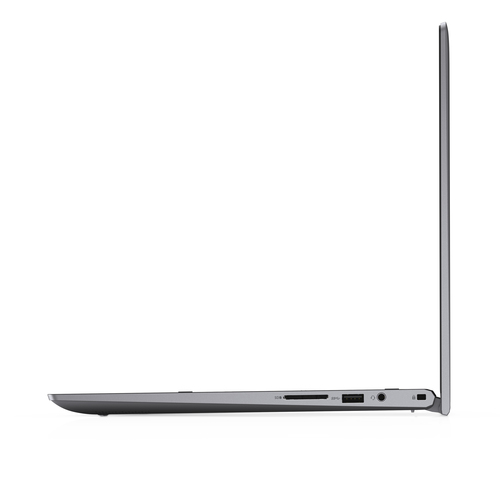

Dell
5406 2in1 (i5406-5214GRY-PUS)
14" Display
i5-1135G7CPU
12 GBRAM
256 GBStorage
Intel Iris Xe GraphicsGraphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Product typeHybrid (2-in-1)
- Product colourGrey, Titanium
- Form factorConvertible (Folder)
- Housing materialAluminium
Display
- Display diagonal35.6 cm (14")
- Display resolution1920 x 1080 pixels
- TouchscreenYes
- HD typeFull HD
- LED backlightYes
- Native aspect ratio16:9
- Display surfaceGloss
- Display brightness220 cd/m²
- Pixel density157 ppi
- RGB colour spaceNTSC
- Colour gamut45%
- Maximum refresh rate60 Hz
- Contrast ratio (typical)500:1
Processor
- Processor manufacturerIntel
- Processor familyIntel® Core™ i5
- Processor generation11th gen Intel® Core™ i5
- Processor modeli5-1135G7
- Processor cores4
- Processor boost frequency4.2 GHz
- Processor cache8 MB
- Configurable TDP-up frequency2.4 GHz
- Configurable TDP-up28 W
- Configurable TDP-down12 W
- Configurable TDP-down frequency0.9 GHz
Memory
- Internal memory12 GB
- Internal memory typeDDR4-SDRAM
- Memory form factorSO-DIMM
- Memory slots2x SO-DIMM
- Maximum internal memory16 GB
Storage
- Total storage capacity256 GB
- Storage mediaSSD
- Total SSDs capacity256 GB
- Number of SSDs installed1
- SSD capacity256 GB
- SSD interfaceNVMe, PCI Express
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
- Card reader integratedYes
- Compatible memory cardsSD, SDHC, SDXC
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- Discrete graphics cardNo
- On-board graphics card modelIntel Iris Xe Graphics
Audio
- Audio chipRealtek ALC3204
- Audio systemMaxxAudio Pro
- Number of built-in speakers2
- Speakers manufacturerWaves
- Speaker power2 W
- Built-in microphoneYes
- Number of microphones2
Camera
- Front cameraYes
- Front camera resolution (numeric)0.92 MP
- Front camera resolution1280 x 720 pixels
- Front camera HD typeHD
- Video capturing speed30 fps
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 6 (802.11ax)
- Wi-Fi standardsWi-Fi 6 (802.11ax)
- Mobile network connectionNo
- Ethernet LANNo
- BluetoothYes

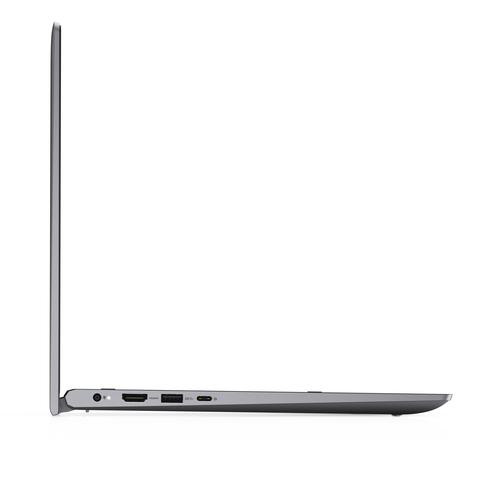

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
- HDMI ports quantity1
- HDMI version1.4
- Combo headphone/mic portYes
- USB Type-C DisplayPort Alternate ModeYes
Performance
- Temperature sensorYes

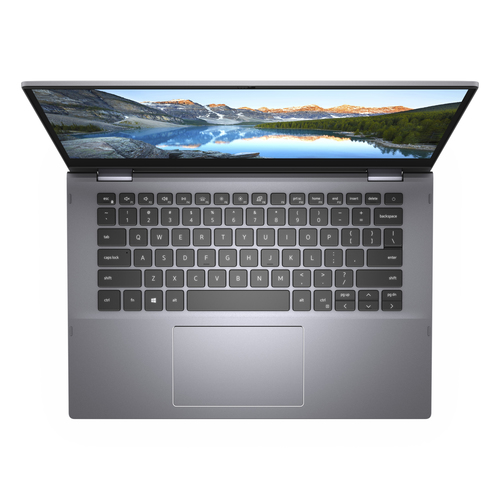

Keyboard
- Pointing deviceTouchpad
- Numeric keypadNo
Software
- Operating system architecture64-bit
- Operating system installedWindows 10 Home
Processor special features
- Intel Trusted Execution TechnologyNo
- Intel VT-x with Extended Page Tables (EPT)Yes
- Intel Stable Image Platform Program (SIPP)No
- Intel Software Guard Extensions (Intel SGX)No
- Idle StatesYes
- CPU configuration (max)1
- Embedded options availableNo
- Intel Virtualization Technology for Directed I/O (VT-d)Yes
- Intel Virtualization Technology (VT-x)Yes
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Removable batteryNo
- Battery recharge time4 h
- Battery charge indicatorYes
Power
- AC adapter frequency50/60 Hz
- AC adapter input voltage100 - 240 V
- DC-in jackYes
Security
- Cable lock slotYes
- Cable lock slot typeNoble
- Password protectionYes
Operational conditions
- Operating temperature (T-T)0 - 35 °C
- Storage temperature (T-T)-40 - 65 °C
- Operating relative humidity (H-H)10 - 90%
- Storage relative humidity (H-H)0 - 95%
- Operating altitude-15.2 - 3048 m
- Non-operating altitude-15.2 - 10668 m
- Operating shock110 G
- Non-operating shock160 G
- Operating vibration0.66 G
- Non-operating vibration1.3 G
Weight & dimensions
- Width324.3 mm
- Depth222.9 mm
- Height (front)1.7 cm
- Height (rear)1.89 cm
- Weight1.72 kg
Packaging content
- Cables includedAC
