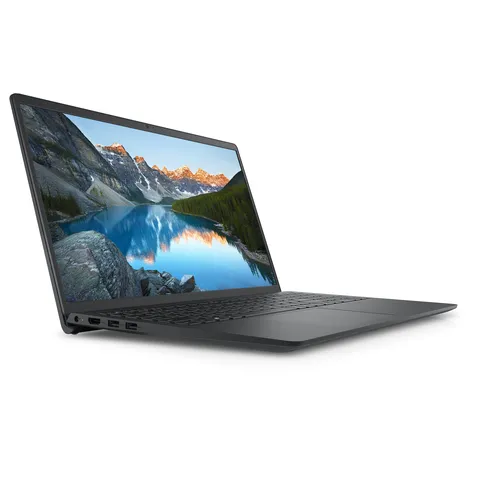

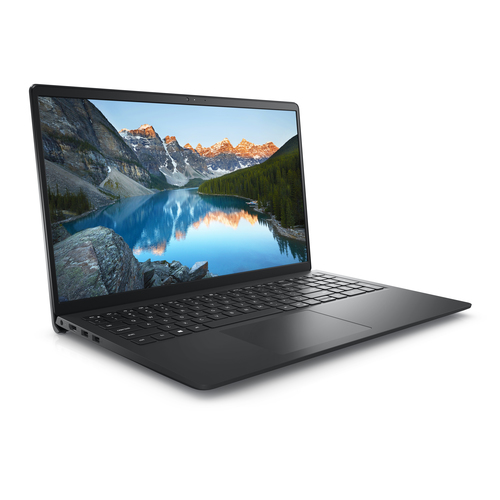

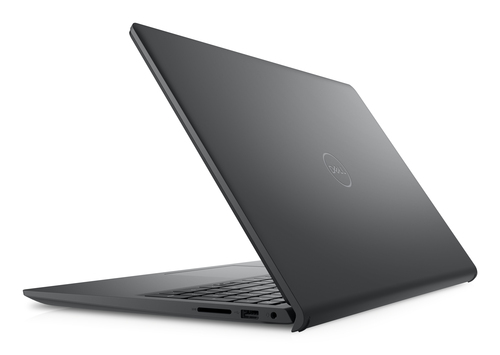

Dell
3520 (i3520-5253BLK-PGB)
15.6" Display
i5-1235UCPU
16 GBRAM
512 GBStorage
Intel Iris Xe GraphicsGraphics
Price History
Not enough historical data yet.
Technical Specifications

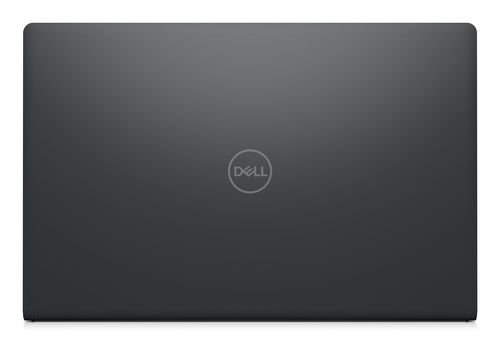

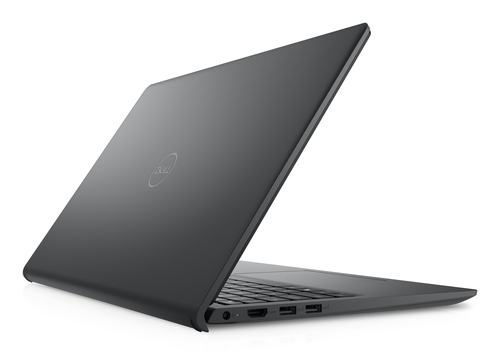

Design
- Product typeLaptop
- Product colourBlack
- Form factorClamshell
- Housing materialPlastic
Display
- Display diagonal39.6 cm (15.6")
- Display resolution1920 x 1080 pixels
- TouchscreenNo
- HD typeFull HD
- Panel typeIPS
- LED backlightYes
- Native aspect ratio16:9
- Anti-glare screenYes
- Display brightness250 cd/m²
- Pixel density141 ppi
- RGB colour spaceNTSC
- Colour gamut45%
- Maximum refresh rate120 Hz
- Contrast ratio (typical)600:1
Processor
- Processor manufacturerIntel
- Processor familyIntel® Core™ i5
- Processor generation12th gen Intel® Core™ i5
- Processor modeli5-1235U
- Processor cores10
- Processor threads12
- Processor boost frequency4.4 GHz
- Performance cores2
- Efficient cores8
- Performance-core Max Turbo Frequency4.4 GHz
- Efficient-core Max Turbo Frequency3.3 GHz
- Processor cache12 MB
- Processor cache typeSmart Cache
- Processor base power15 W
- Maximum turbo power55 W
Memory
- Internal memory16 GB
- Internal memory typeDDR4-SDRAM
- Memory form factorSO-DIMM
- Memory layout (slots x size)2 x 8 GB
- Memory slots2x SO-DIMM
- Maximum internal memory16 GB
- Memory data transfer rate2666 MT/s
Storage
- Total storage capacity512 GB
- Storage mediaSSD
- Total SSDs capacity512 GB
- Number of SSDs installed1
- SSD capacity512 GB
- SSD interfacePCI Express
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
- Card reader integratedYes
- Compatible memory cardsSDXC, SD, SDHC
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardNo
- On-board graphics card familyIntel Iris Xe Graphics
- On-board graphics card modelIntel Iris Xe Graphics
Audio
- Number of built-in speakers2
- Speaker power2 W
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera resolution (numeric)0.92 MP
- Front camera resolution1280 x 720 pixels
- Front camera HD typeHD
- Video capturing speed30 fps
Network
- Top Wi-Fi standardWi-Fi 6 (802.11ax)
- Wi-Fi standardsWi-Fi 6 (802.11ax)
- Mobile network connectionNo
- Wi-Fi data rate (max)2400 Mbit/s
- Antenna type2x2
- WLAN controller modelIntel Wi-Fi 6 AX201
- WLAN controller manufacturerIntel
- BluetoothYes

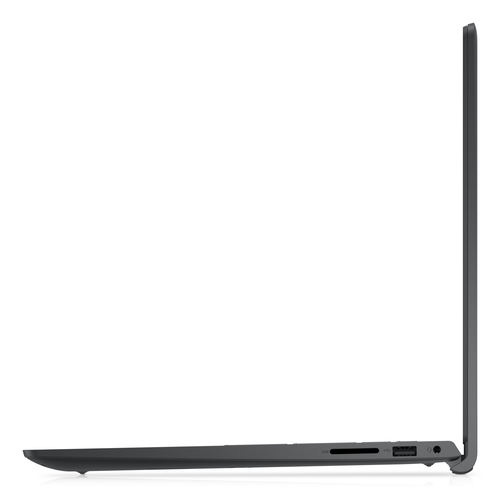

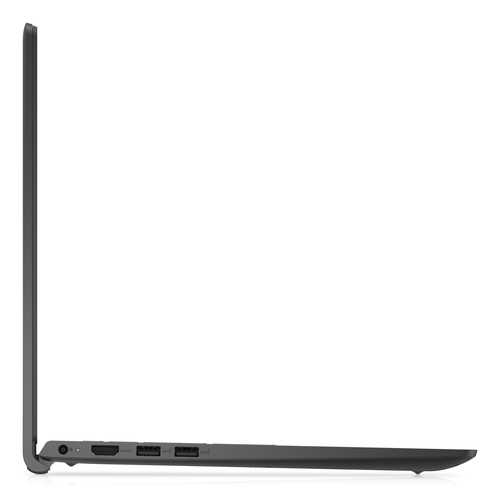

Ports & interfaces
- USB 2.0 ports quantity1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- HDMI ports quantity1
- HDMI version1.4
- Combo headphone/mic portYes
- Power adapter barrel connector4.5 mm

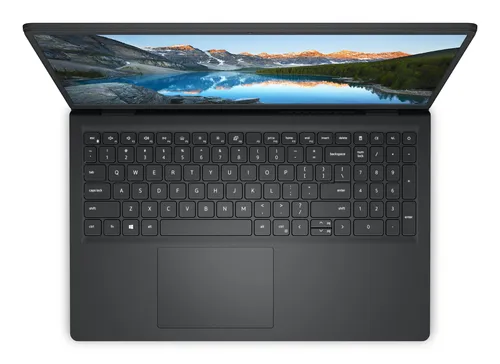

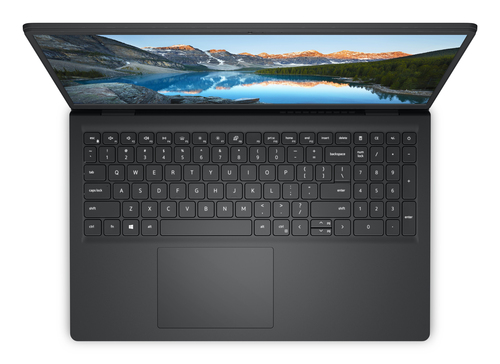

Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
Software
- Operating system architecture64-bit
- Operating system installedWindows 11 Home
Battery
- Battery technologyLithium Polymer (LiPo)
- Number of battery cells3
- Battery capacity41 Wh
- Battery voltage11.25 V
- Battery recharge time4 h
- Fast chargingYes
- Battery charge indicatorYes
- Battery weight190 g
Power
- AC adapter power65 W
- AC adapter frequency50 - 60 Hz
- AC adapter input voltage100 - 240 V
- AC adapter output current3.34 A
- AC adapter output voltage19.5 V
- DC-in jackYes
Operational conditions
- Operating temperature (T-T)0 - 35 °C
- Storage temperature (T-T)-40 - 65 °C
- Operating relative humidity (H-H)10 - 90%
- Storage relative humidity (H-H)0 - 95%
- Operating altitude-15.2 - 3048 m
- Non-operating altitude-15.2 - 10668 m
- Operating shock110 G
- Non-operating shock160 G
- Operating vibration0.66 G
- Non-operating vibration1.3 G
Certificates
- Wi-Fi certifiedYes
Sustainability
- Sustainability certificatesENERGY STAR
Weight & dimensions
- Width358.5 mm
- Depth235.6 mm
- Height (front)1.7 cm
- Height (rear)1.9 cm
- Weight1.9 kg
Packaging content
- AC adapter includedYes
- Cables includedAC
