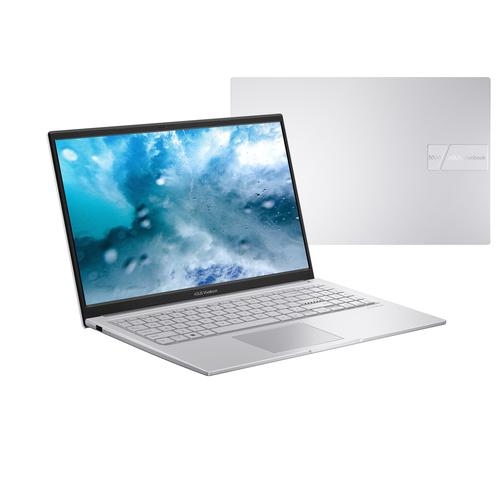

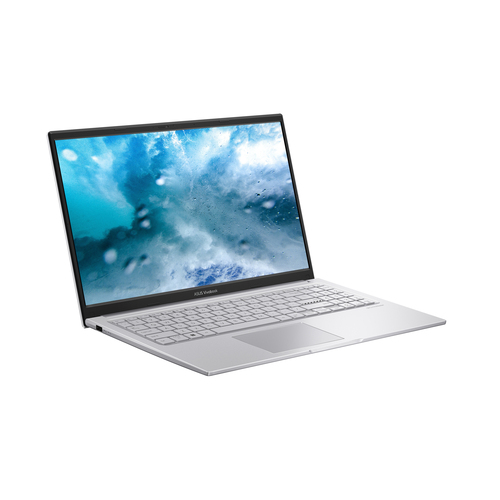

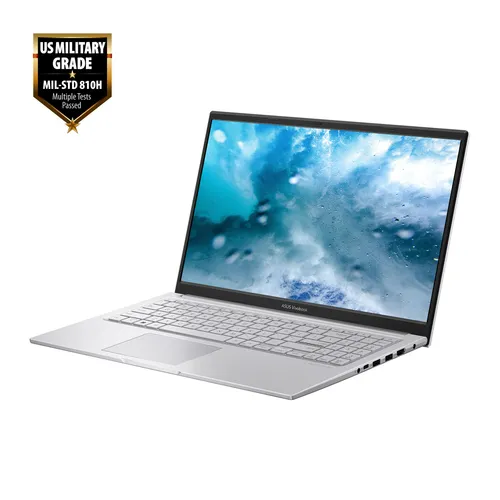

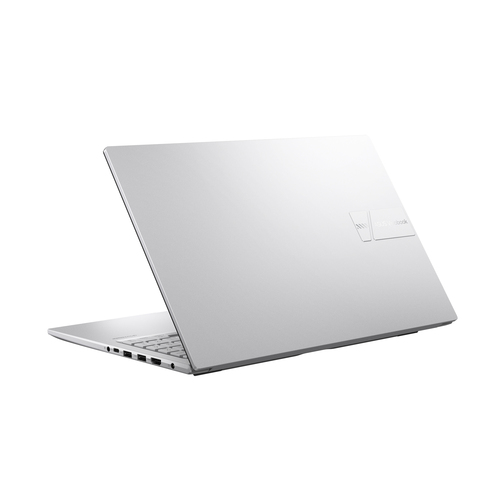

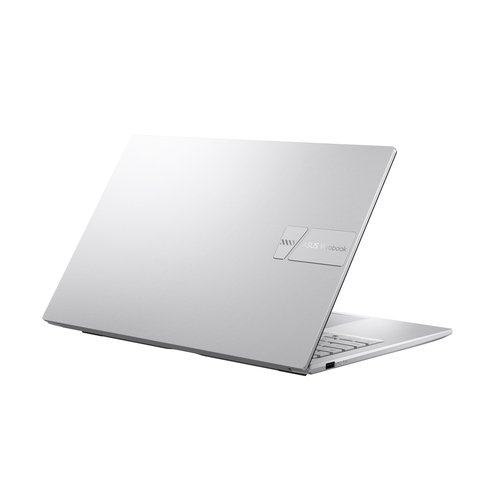

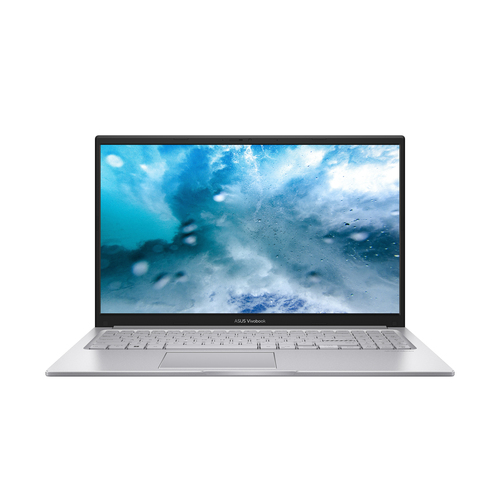

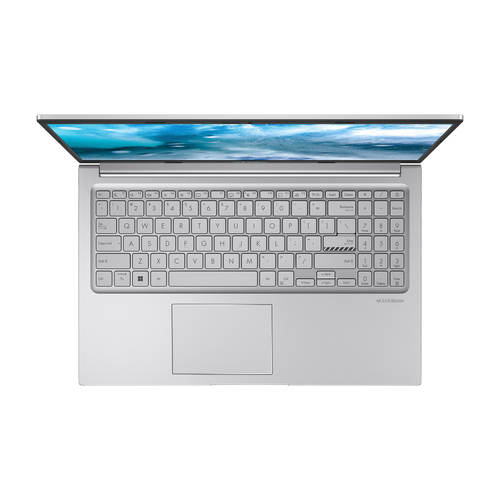

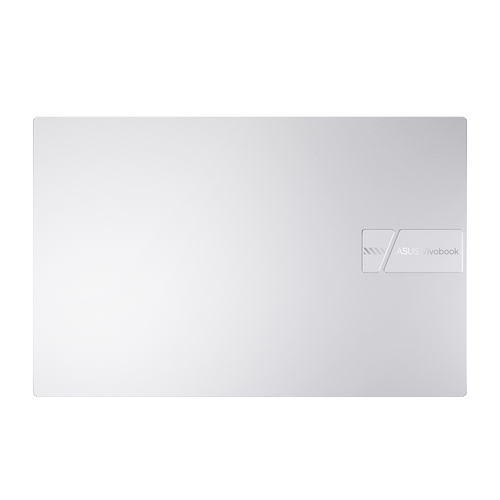

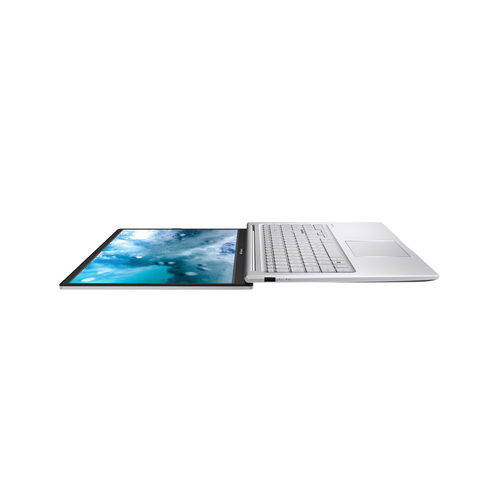

Asus
X1504ZA-NJ194W
15.6" Display
i7-1255UCPU
16 GBRAM
512 GBStorage
Intel Iris Xe GraphicsGraphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Colour nameCool Silver
- Product typeLaptop
- Product colourSilver
- Form factorClamshell
- Housing materialPlastic
- Market positioningHome
- Introduction year2023
- Country of originChina

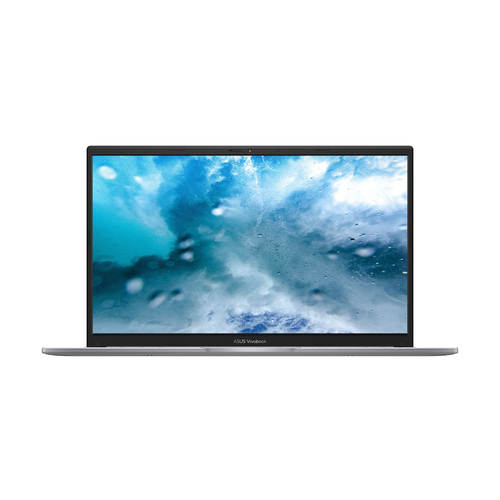

Display
- Display diagonal39.6 cm (15.6")
- Display resolution1920 x 1080 pixels
- TouchscreenNo
- HD typeFull HD
- LED backlightYes
- Native aspect ratio16:9
- Anti-glare screenYes
- Display brightness250 cd/m²
- RGB colour spaceNTSC
- Colour gamut45%
- Maximum refresh rate60 Hz
Processor
- Processor manufacturerIntel
- Processor familyIntel® Core™ i7
- Processor generation12th gen Intel® Core™ i7
- Processor modeli7-1255U
- Processor cores10
- Processor boost frequency4.7 GHz
- Performance cores2
- Efficient cores8
- Performance-core Max Turbo Frequency4.7 GHz
- Efficient-core Max Turbo Frequency3.5 GHz
- Processor cache12 MB
- Processor cache typeSmart Cache
- Processor base power15 W
- Maximum turbo power55 W
Memory
- Internal memory16 GB
- Internal memory typeDDR4-SDRAM
- Memory form factorOn-board + SO-DIMM
- Memory layout (slots x size)1 x 8 GB
- Memory slots1x SO-DIMM
- Maximum internal memory16 GB
Storage
- Total storage capacity512 GB
- Storage mediaSSD
- Total SSDs capacity512 GB
- Number of SSDs installed1
- SSD capacity512 GB
- SSD interfacePCI Express 3.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardNo
- On-board graphics card familyIntel Iris Xe Graphics
- On-board graphics card modelIntel Iris Xe Graphics
Audio
- Audio systemSonicMaster
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera resolution1280 x 720 pixels
- Front camera HD typeHD
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- Wi-Fi standardsWi-Fi 6E (802.11ax)
- Mobile network connectionNo
- Antenna type1x1
- Ethernet LANNo
- BluetoothYes
- Bluetooth version5.3

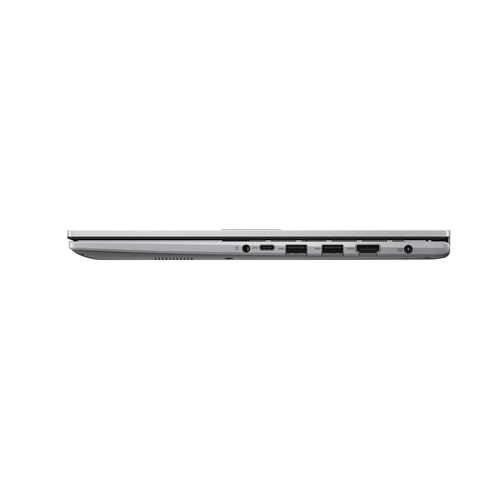

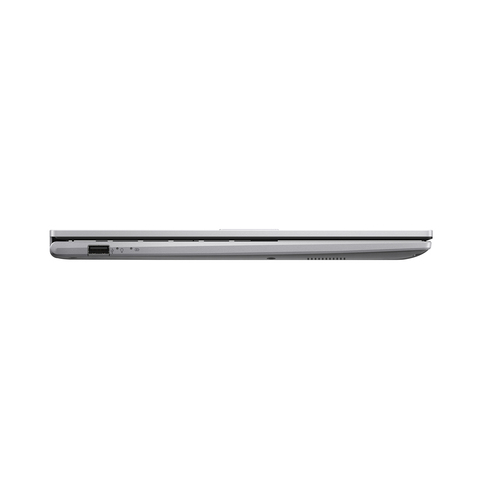

Ports & interfaces
- USB 2.0 ports quantity1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- HDMI ports quantity1
- HDMI version1.4
- Combo headphone/mic portYes
- Power adapter barrel connector4.5 mm
Performance
- Repairability index8.4
Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
- Keyboard backlitYes
Software
- Operating system architecture64-bit
- Trial software1-month trial for new Microsoft 365 customers.
- Operating system installedWindows 11 Home
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Number of battery cells3
- Battery capacity42 Wh
Power
- AC adapter power45 W
- AC adapter frequency50 - 60 Hz
- AC adapter input voltage100 - 240 V
- AC adapter output current2.37 A
- AC adapter output voltage19 V
- DC-in jackYes
Security
- Fingerprint readerNo
- Trusted Platform Module (TPM)Yes
- Password protectionYes
- Password protection typeBIOS, User
Certificates
- Compliance certificatesRoHS, REACH
Sustainability
- Sustainability complianceYes
- Sustainability certificatesEPEAT Silver, ENERGY STAR
Weight & dimensions
- Width359.7 mm
- Depth232.5 mm
- Height17.9 mm
- Weight1.7 kg
Packaging data
- Package width65 mm
- Package depth481 mm
- Package height288 mm
- Package weight2.25 kg
Logistics data
- Commodity Classification Automated Tracking System (CCATS)8471300000
