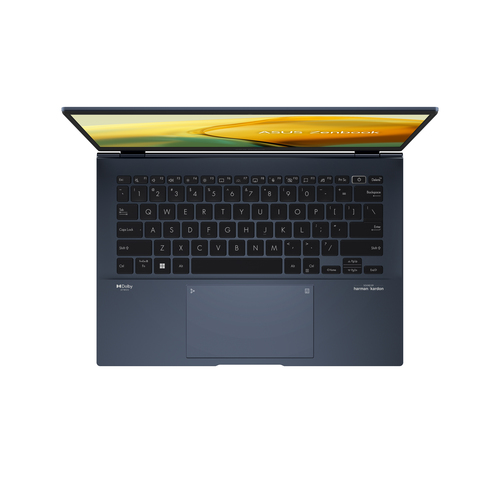

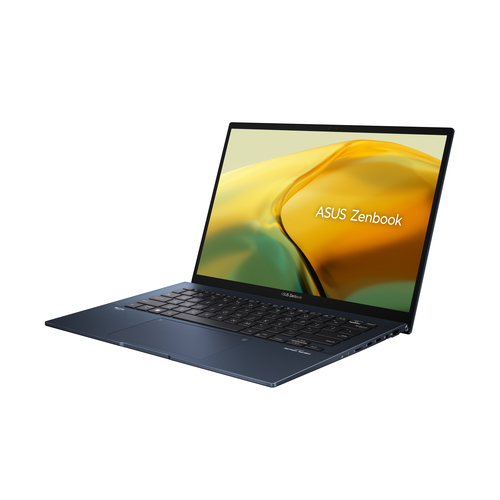

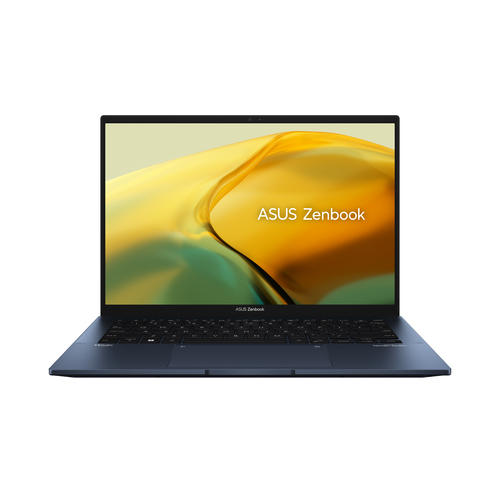

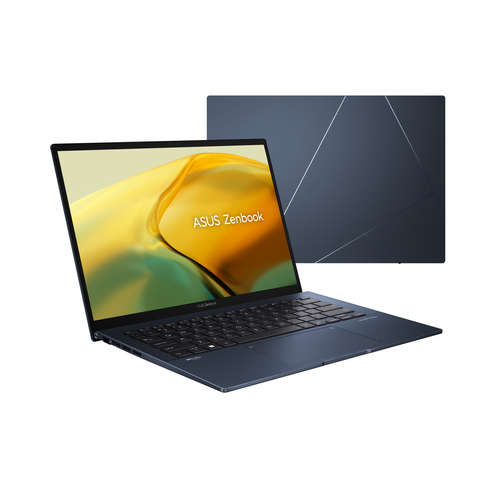

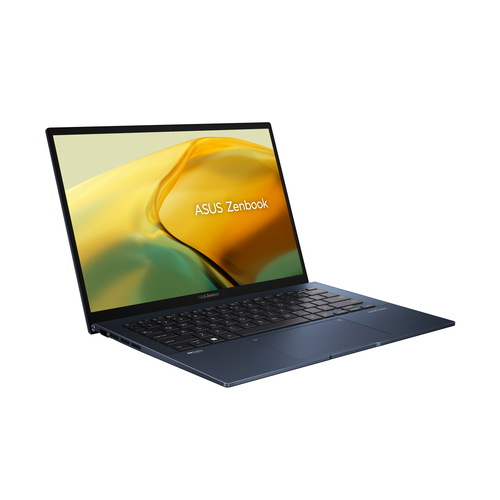

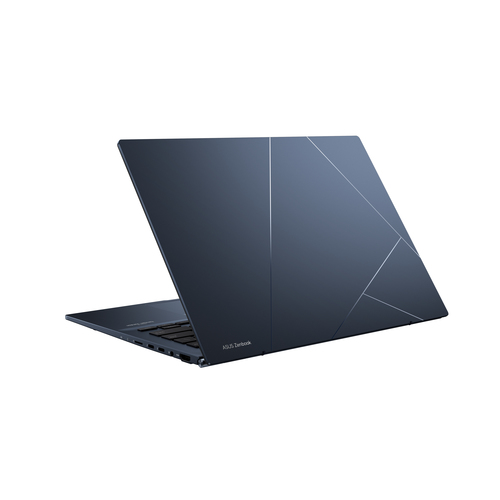

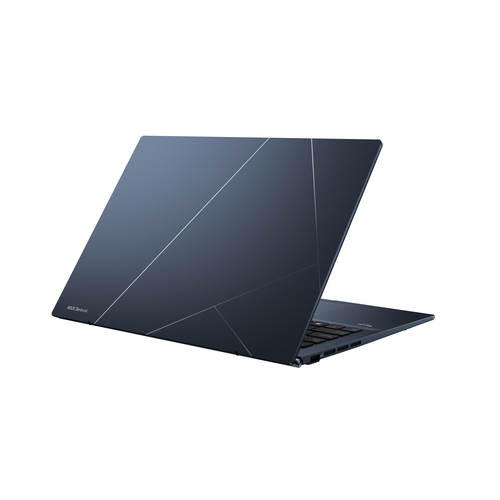

Asus
UX3402ZA-KP234W
14" Display
i5-1240PCPU
8 GBRAM
512 GBStorage
Intel Iris Xe GraphicsGraphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Colour namePonder Blue
- Product typeLaptop
- Product colourBlue
- Form factorClamshell
- Housing materialAluminium
- Market positioningHome
- Introduction year2023
Display
- Display diagonal35.6 cm (14")
- Display resolution2560 x 1600 pixels
- TouchscreenNo
- HD typeWQXGA
- Panel typeIPS
- Native aspect ratio16:10
- Anti-glare screenYes
- Display brightness400 cd/m²
- RGB colour spacesRGB
- Colour gamut100%
- Maximum refresh rate60 Hz
Processor
- Processor manufacturerIntel
- Processor familyIntel® Core™ i5
- Processor generation12th gen Intel® Core™ i5
- Processor modeli5-1240P
- Processor cores12
- Processor boost frequency4.4 GHz
- Performance cores4
- Efficient cores8
- Performance-core Max Turbo Frequency4.4 GHz
- Efficient-core Max Turbo Frequency3.3 GHz
- Processor cache12 MB
- Processor cache typeSmart Cache
- Processor base power28 W
- Maximum turbo power64 W
Memory
- Internal memory8 GB
- Internal memory typeLPDDR5-SDRAM
- Memory form factorOn-board
- Maximum internal memory8 GB
Storage
- Total storage capacity512 GB
- Storage mediaSSD
- Total SSDs capacity512 GB
- Number of SSDs installed1
- SSD capacity512 GB
- SSD interfacePCI Express 4.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
- Card reader integratedYes
- Compatible memory cardsMicroSD (TransFlash)
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardNo
- On-board graphics card familyIntel Iris Xe Graphics
- On-board graphics card modelIntel Iris Xe Graphics
Audio
- Audio systemSmart Amp
- Speakers manufacturerHarman Kardon
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera resolution1280 x 720 pixels
- Front camera HD typeHD
Network
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- Wi-Fi standardsWi-Fi 6E (802.11ax)
- Mobile network connectionNo
- Antenna type2x2
- Ethernet LANNo
- BluetoothYes
- Bluetooth version5.3

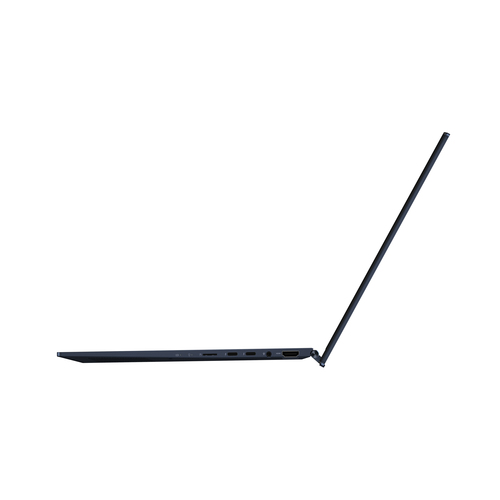

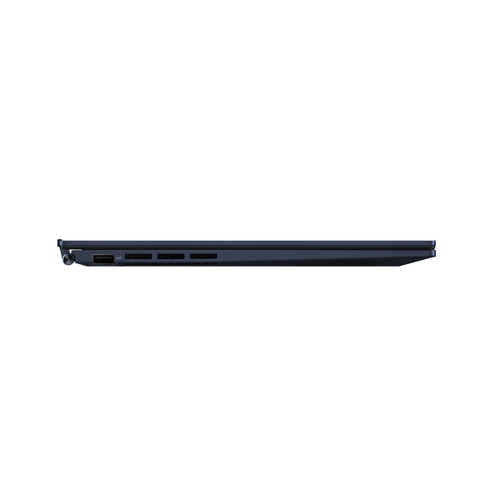

Ports & interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
- HDMI ports quantity1
- HDMI version2.1
- Thunderbolt 4 ports quantity2
- Intel® Thunderbolt 4Yes
- Combo headphone/mic portYes
- USB Type-C DisplayPort Alternate ModeYes
Performance
- Repairability index7.6
Keyboard
- Pointing deviceTouchpad
- Numeric keypadNo
- Keyboard backlitYes
Software
- Operating system architecture64-bit
- Operating system installedWindows 11 Home
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Number of battery cells4
- Battery capacity75 Wh
Power
- AC adapter power65 W
- AC adapter frequency50 - 60 Hz
- AC adapter input voltage100 - 240 V
- AC adapter output current3.25 A
- AC adapter output voltage20 V
- USB Type-C charging portYes
- USB Power Delivery (USB PD)Yes
Security
- Fingerprint readerYes
- Trusted Platform Module (TPM)Yes
- Password protectionYes
Certificates
- Compliance certificatesREACH, RoHS
Sustainability
- Sustainability complianceYes
- Sustainability certificatesENERGY STAR, EPEAT Silver
Weight & dimensions
- Width313.6 mm
- Depth220.6 mm
- Height16.9 mm
- Weight1.35 kg
Packaging content
- AC adapter includedYes
