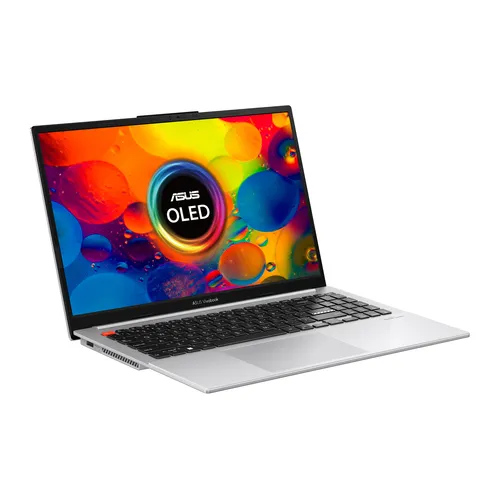

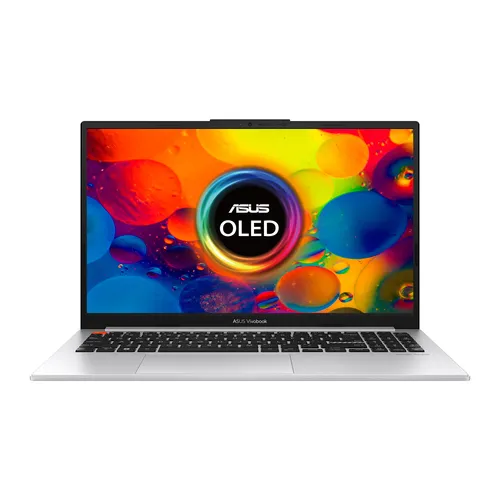

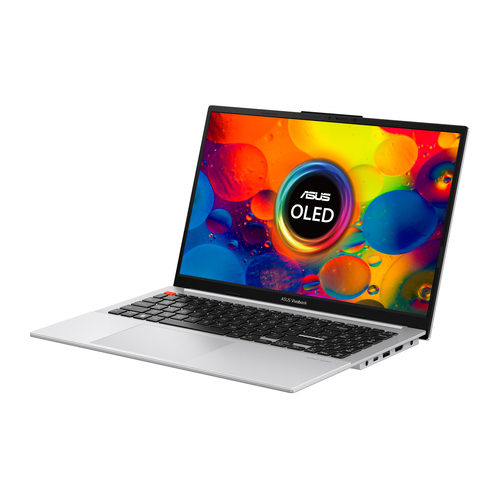

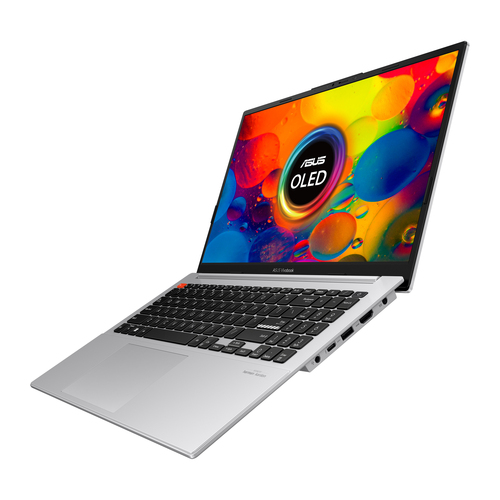

ASUS
S5504VN-L1060W
Intel Core i5-13500HCPU (Score: 20.956)
Intel ArcGPU (Score: 5.484)
N/AVALUE SCORE
16 GBRAM
512 GBSTORAGE
15.6" DISPLAY
Best Price
N/A
Price History
Loading price history...
Technical Specifications
Design
- Colour nameCool Silver
- Product typeLaptop
- Product colourSilver
- Form factorClamshell
- Housing materialAluminium, Plastic
- Market positioningHome
Display
- Display diagonal39.6 cm (15.6")
- Display resolution1920 x 1080 pixels
- TouchscreenNo
- HD typeFull HD
- Panel typeOLED
- Native aspect ratio16:9
- Display surfaceGloss
- Display brightness400 cd/m²
- RGB colour spaceDCI-P3
- Colour gamut100%
- Maximum refresh rate120 Hz
Processor
- Processor manufacturerIntel
- Processor familyIntel® Core™ i5
- Processor generation13th gen Intel® Core™ i5
- Processor modeli5-13500H
- Processor cores12
- Processor threads16
- Processor boost frequency4.7 GHz
- Performance cores4
- Efficient cores8
- Performance-core Max Turbo Frequency4.7 GHz
- Efficient-core Max Turbo Frequency3.5 GHz
- Processor cache18 MB
- Processor cache typeSmart Cache
- Configurable TDP-down35 W
- Processor base power45 W
- Maximum turbo power95 W
Memory
- Internal memory16 GB
- Internal memory typeLPDDR5-SDRAM
- Memory form factorOn-board
- Maximum internal memory16 GB
Storage
- Total storage capacity512 GB
- Storage mediaSSD
- Total SSDs capacity512 GB
- Number of SSDs installed1
- SSD capacity512 GB
- SSD interfacePCI Express 4.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
Graphics
- Discrete graphics card modelIntel Arc A350M
- Discrete graphics card memory4 GB
- Discrete graphics memory typeGDDR6
- On-board graphics cardYes
- On-board GPU manufacturerIntel
- Discrete graphics cardYes
- On-board graphics card familyIntel Iris Xe Graphics
- On-board graphics card modelIntel Iris Xe Graphics
Audio
- Audio systemSmart Amp
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera HD typeFull HD
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- Wi-Fi standardsWi-Fi 6E (802.11ax)
- Mobile network connectionNo
- Antenna type2x2
- Ethernet LANNo
- BluetoothYes
- Bluetooth version5.3

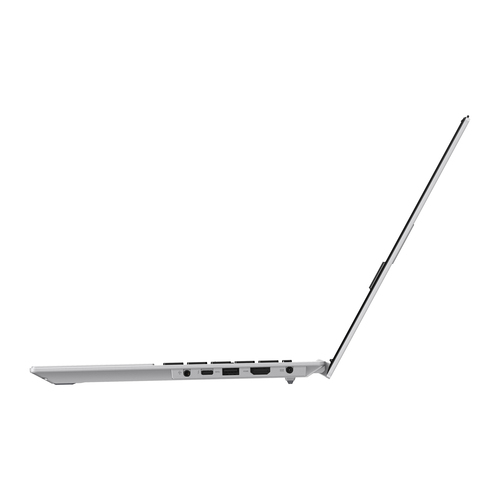

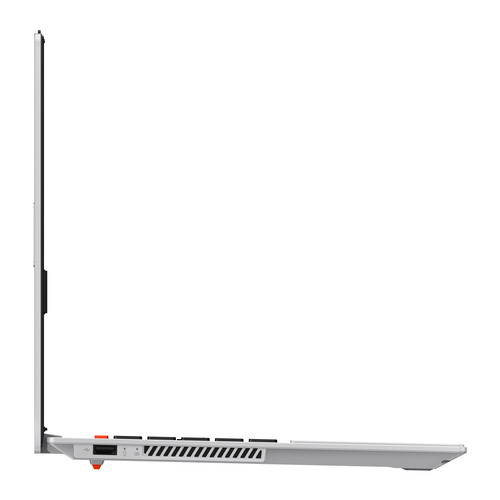

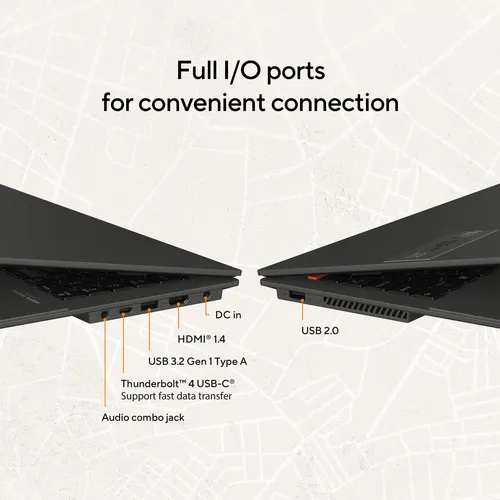

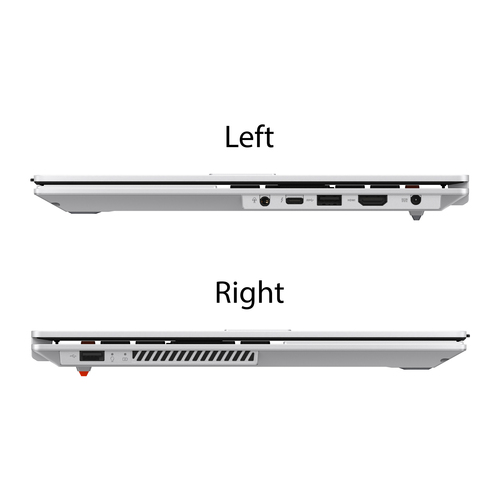

Ports & interfaces
- USB 2.0 ports quantity1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
- HDMI ports quantity1
- HDMI version1.4
- Thunderbolt 4 ports quantity1
- Intel® Thunderbolt 4Yes
- Combo headphone/mic portYes
- USB Type-C DisplayPort Alternate ModeYes

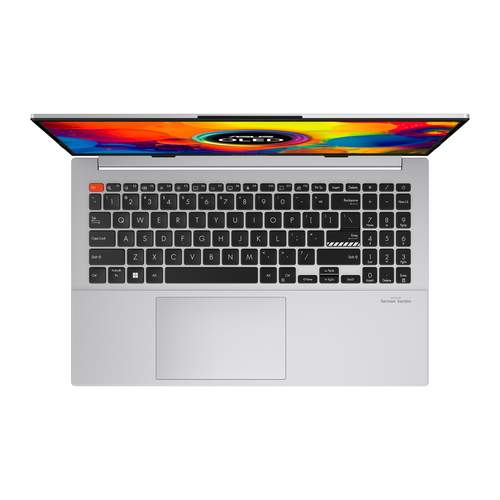

Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
- Keyboard backlitYes
Software
- Operating system architecture64-bit
- Trial software1-month trial for new Microsoft 365 customers, McAfee LiveSafe™ 30-day trial
- Operating system installedWindows 11 Home
Processor special features
- Intel® Evo™ Platform VerifiedYes
- CPU configuration (max)1
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Number of battery cells3
- Battery capacity70 Wh
Power
- AC adapter power90 W
- AC adapter frequency50 - 60 Hz
- AC adapter input voltage100 - 240 V
- AC adapter output current4.74 A
- AC adapter output voltage19 V
- DC-in jackYes
- USB Power Delivery (USB PD)Yes
Security
- Fingerprint readerYes
- Trusted Platform Module (TPM)Yes
- Password protectionYes
- Password protection typeBIOS, User
Weight & dimensions
- Width359.3 mm
- Depth229.4 mm
- Height17.9 mm
- Weight1.7 kg
Product Identifiers
- Manufacturer Part No (MPN)S5504VN-L1060W
- Barcode (EAN)4711387241370
