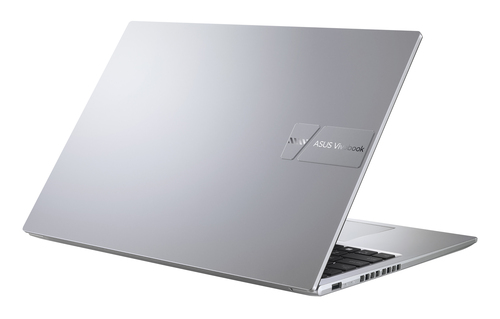

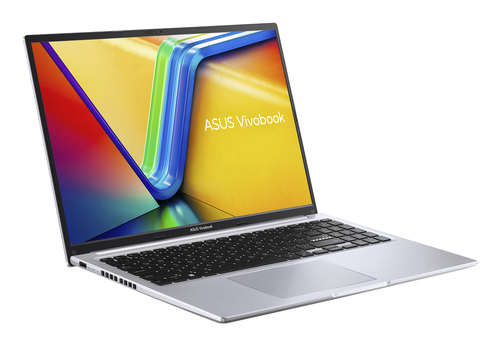

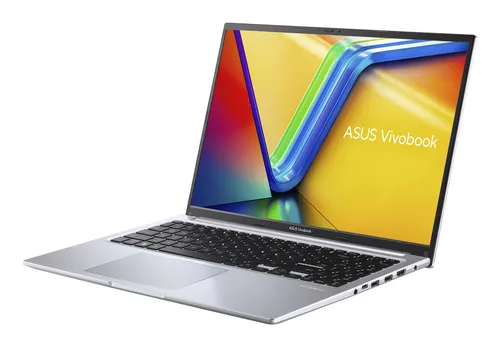

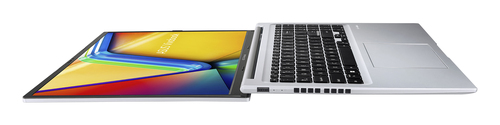

Asus
M1605YA-MB601W
16" Display
7430UCPU
16 GBRAM
512 GBStorage
AMD Radeon GraphicsGraphics
Price History
Not enough historical data yet.
Technical Specifications
Design
- Colour nameCool Silver
- Product typeLaptop
- Product colourSilver
- Form factorClamshell
- Housing materialPlastic
- Market positioningHome
- Introduction year2023
- Country of originChina

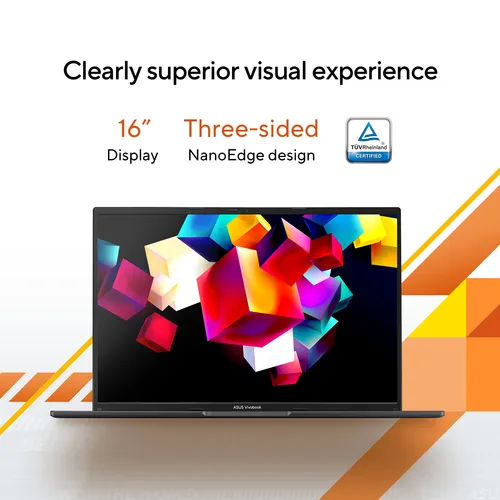

Display
- Display diagonal40.6 cm (16")
- Display resolution1920 x 1200 pixels
- TouchscreenNo
- HD typeWUXGA
- Panel typeIPS-Level
- LED backlightYes
- Native aspect ratio16:10
- Anti-glare screenYes
- Display brightness300 cd/m²
- RGB colour spaceNTSC
- Colour gamut45%
- Maximum refresh rate60 Hz
Processor
- Processor manufacturerAMD
- Processor familyAMD Ryzen™ 5
- Processor generationAMD Ryzen 7000 Series
- Processor model7430U
- Processor cores6
- Processor boost frequency4.3 GHz
- Processor frequency2.3 GHz
- Processor cache16 MB
- Processor cache typeL2 & L3
- L3 cache16 MB
- L2 cache3 MB
Memory
- Internal memory16 GB
- Internal memory typeDDR4-SDRAM
- Memory form factorOn-board + SO-DIMM
- Memory layout (slots x size)1 x 8 GB
- Memory slots1x SO-DIMM
- Maximum internal memory16 GB
Storage
- Total storage capacity512 GB
- Storage mediaSSD
- Total SSDs capacity512 GB
- Number of SSDs installed1
- SSD capacity512 GB
- SSD interfacePCI Express 3.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- Discrete graphics cardNo
- On-board graphics card modelAMD Radeon Graphics
Audio
- Audio systemSonicMaster
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera resolution1280 x 720 pixels
- Front camera HD typeHD
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- Wi-Fi standardsWi-Fi 6E (802.11ax)
- Mobile network connectionNo
- Antenna type1x1
- Ethernet LANNo
- BluetoothYes
- Bluetooth version5.3

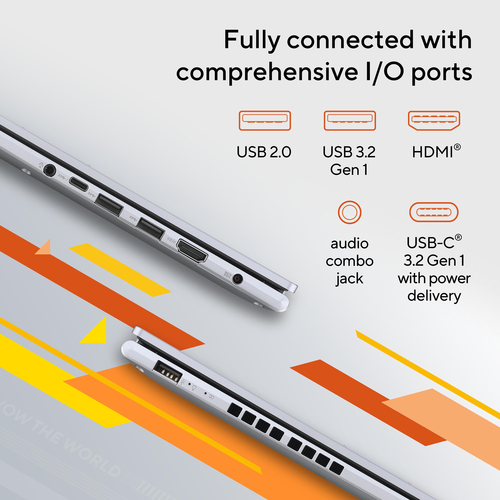

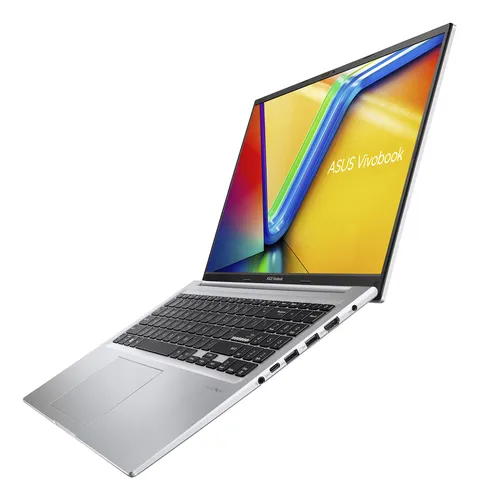

Ports & interfaces
- USB 2.0 ports quantity1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- HDMI ports quantity1
- HDMI version1.4
- Combo headphone/mic portYes
- Power adapter barrel connector4.5 mm

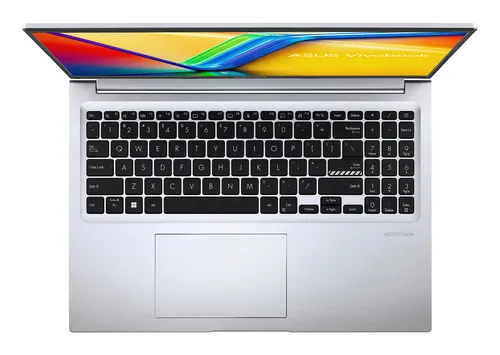

Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
Software
- Operating system architecture64-bit
- Trial software1-month trial for new Microsoft 365 customers. Credit card required, McAfee LiveSafe 30 days
- Operating system installedWindows 11 Home
- Bundled softwareOne-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025.
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Number of battery cells3
- Battery capacity42 Wh
Power
- AC adapter power45 W
- AC adapter frequency50 - 60 Hz
- AC adapter input voltage100 - 240 V
- AC adapter output current2.37 A
- AC adapter output voltage19 V
- DC-in jackYes
- USB Type-C charging portYes
- USB Power Delivery (USB PD)Yes
Security
- Trusted Platform Module (TPM)Yes
- Password protectionYes
- Password protection typeBIOS, User
Certificates
- Compliance certificatesREACH
Sustainability
- Sustainability certificatesENERGY STAR, EPEAT Silver
Weight & dimensions
- Width358.7 mm
- Depth249.5 mm
- Height19.9 mm

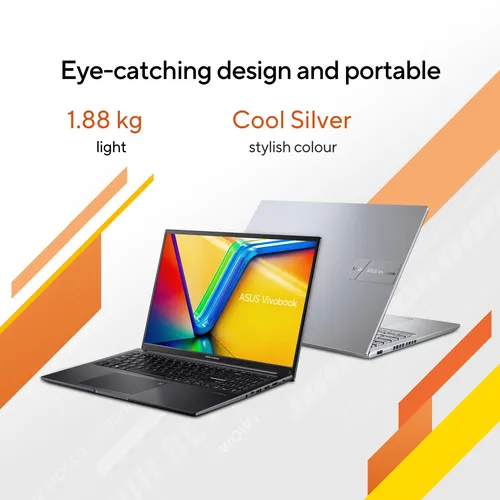

- Weight1.88 kg
Packaging data
- Package width65 mm
- Package depth488 mm
- Package height310 mm
- Package weight4.82 kg
Packaging content
- AC adapter includedYes
Logistics data
- Commodity Classification Automated Tracking System (CCATS)8471300000
