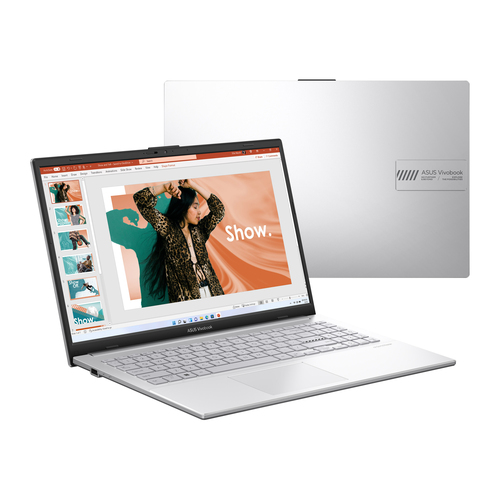

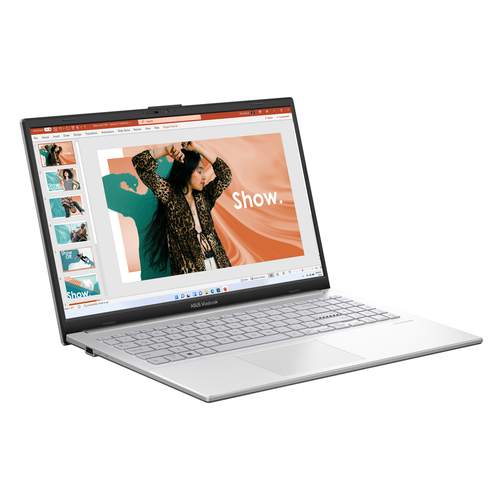

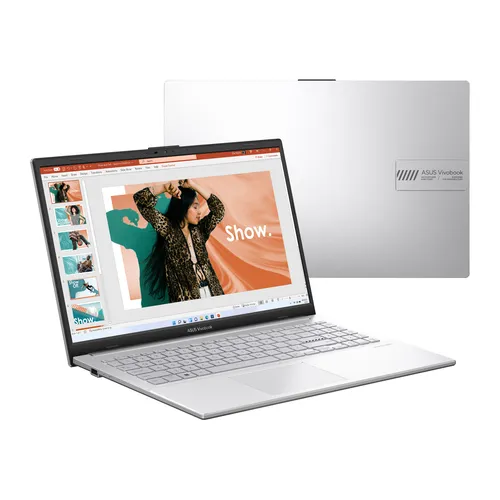

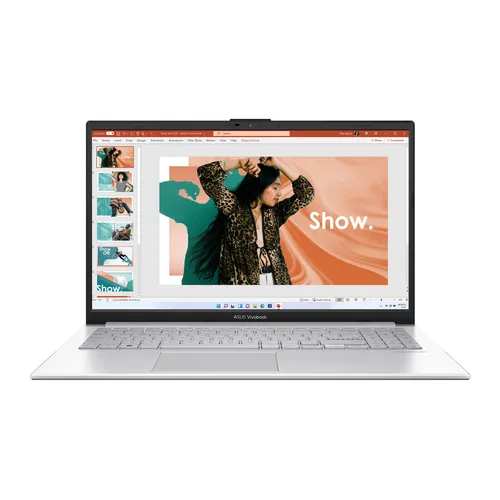

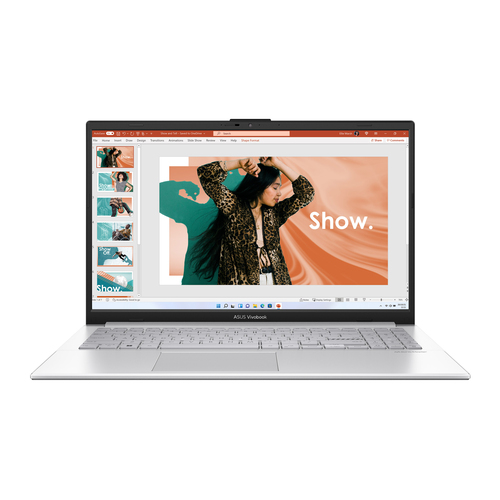

Asus
E1504FA-NJ158W
15.6" Display
7520UCPU
8 GBRAM
512 GBStorage
AMD Radeon 610MGraphics
Price History
Not enough historical data yet.
Technical Specifications

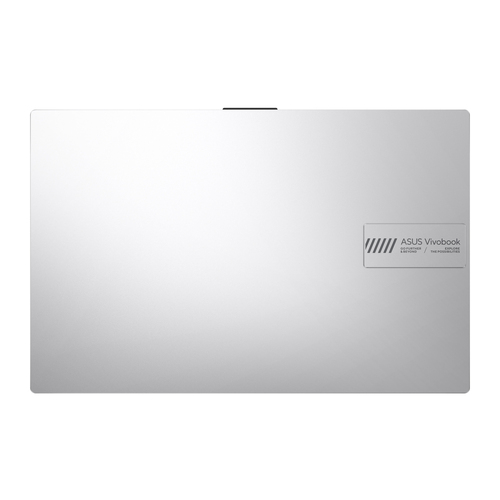

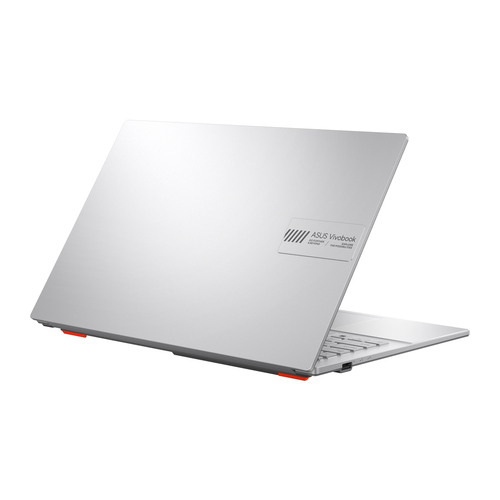

Design
- Colour nameCool Silver
- Product typeLaptop
- Product colourSilver
- Form factorClamshell
- Housing materialPlastic
- Market positioningHome
- Country of originChina
Display
- Display diagonal39.6 cm (15.6")
- Display resolution1920 x 1080 pixels
- TouchscreenNo
- HD typeFull HD
- LED backlightYes
- Native aspect ratio16:9
- Anti-glare screenYes
- Display brightness250 cd/m²
- RGB colour spaceNTSC
- Colour gamut45%
- Maximum refresh rate60 Hz
Processor
- Processor manufacturerAMD
- Processor familyAMD Ryzen™ 5
- Processor generationAMD Ryzen 7000 Series
- Processor model7520U
- Processor cores4
- Processor boost frequency4.3 GHz
- Processor frequency2.8 GHz
- Processor cache4 MB
Memory
- Internal memory8 GB
- Internal memory typeLPDDR5-SDRAM
- Memory form factorOn-board
- Maximum internal memory8 GB
Storage
- Total storage capacity512 GB
- Storage mediaSSD
- Total SSDs capacity512 GB
- Number of SSDs installed1
- SSD capacity512 GB
- SSD interfacePCI Express 3.0
- NVMeYes
- SSD form factorM.2
- Optical drive typeNo
Graphics
- Discrete graphics card modelNot available
- On-board graphics cardYes
- On-board GPU manufacturerAMD
- Discrete graphics cardNo
- On-board graphics card modelAMD Radeon 610M
Audio
- Audio systemSonicMaster
- Built-in microphoneYes
Camera
- Front cameraYes
- Front camera resolution1280 x 720 pixels
- Front camera HD typeHD
- Privacy cameraYes
- Privacy typePrivacy shutter
Network
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- Wi-Fi standardsWi-Fi 6E (802.11ax)
- Mobile network connectionNo
- Antenna type1x1
- Ethernet LANNo
- BluetoothYes
- Bluetooth version5.3

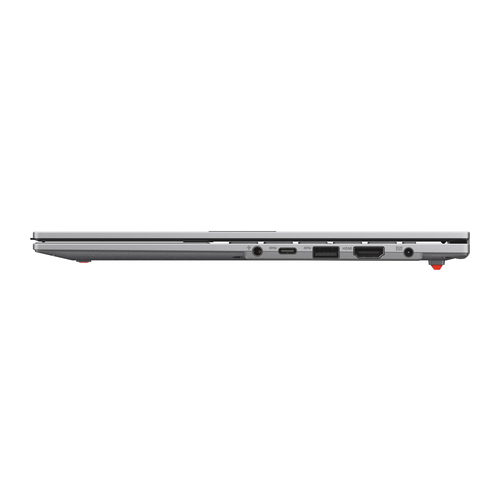

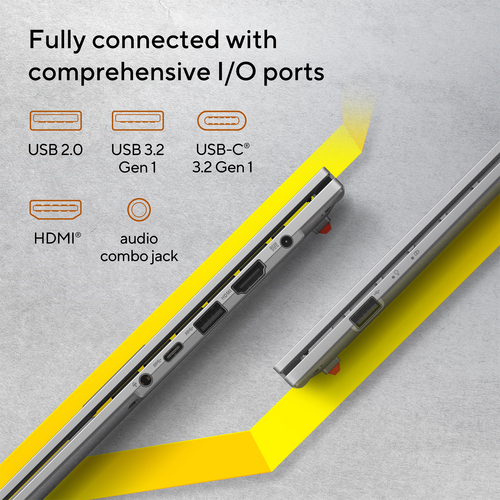

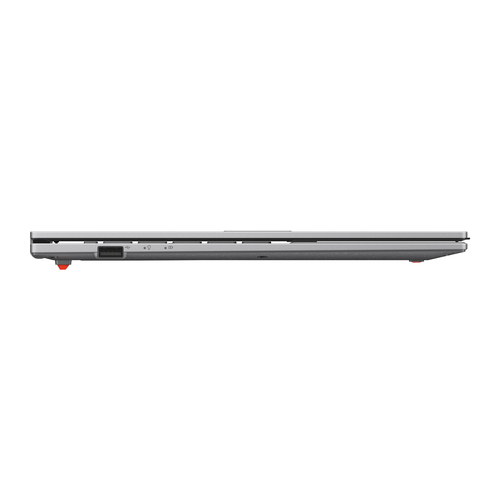

Ports & interfaces
- USB 2.0 ports quantity1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- HDMI ports quantity1
- HDMI version1.4
- Combo headphone/mic portYes
Performance
- Repairability index7.9

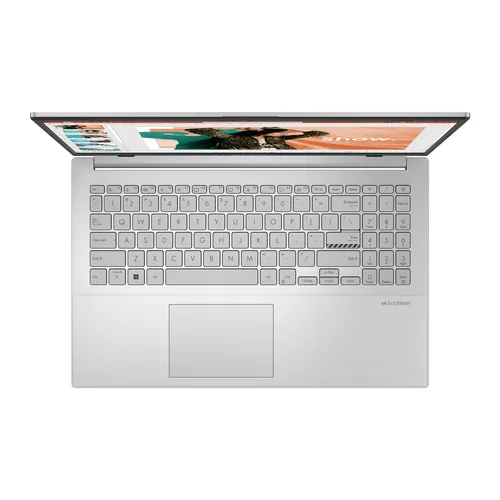

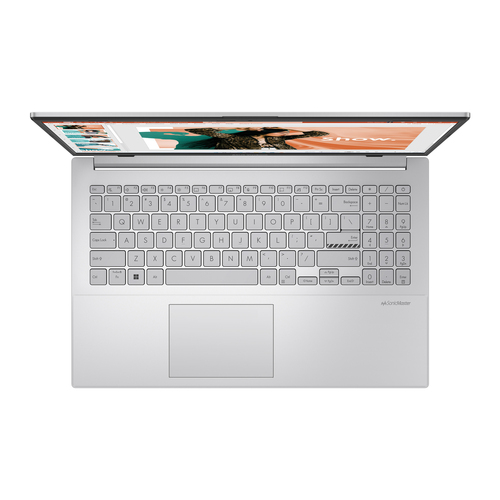

Keyboard
- Pointing deviceTouchpad
- Numeric keypadYes
Software
- Trial software1-month trial for new Microsoft 365 customers. Credit card required.
- Operating system installedWindows 11 Home in S mode
Battery
- Battery technologyLithium-Ion (Li-Ion)
- Number of battery cells3
- Battery capacity42 Wh
Power
- AC adapter power45 W
- AC adapter frequency50 - 60 Hz
- AC adapter input voltage100 - 240 V
- AC adapter output current2.37 A
- AC adapter output voltage19 V
- DC-in jackYes
Security
- Trusted Platform Module (TPM)Yes
- Password protectionYes
- Password protection typeBIOS, User
Weight & dimensions
- Width360.3 mm
- Depth232.5 mm
- Height17.9 mm
- Weight1.63 kg
Packaging data
- Package width65 mm
- Package depth460 mm
- Package height290 mm
- Package weight2.57 kg
Logistics data
- Commodity Classification Automated Tracking System (CCATS)8471300000
